C4 Fabrication

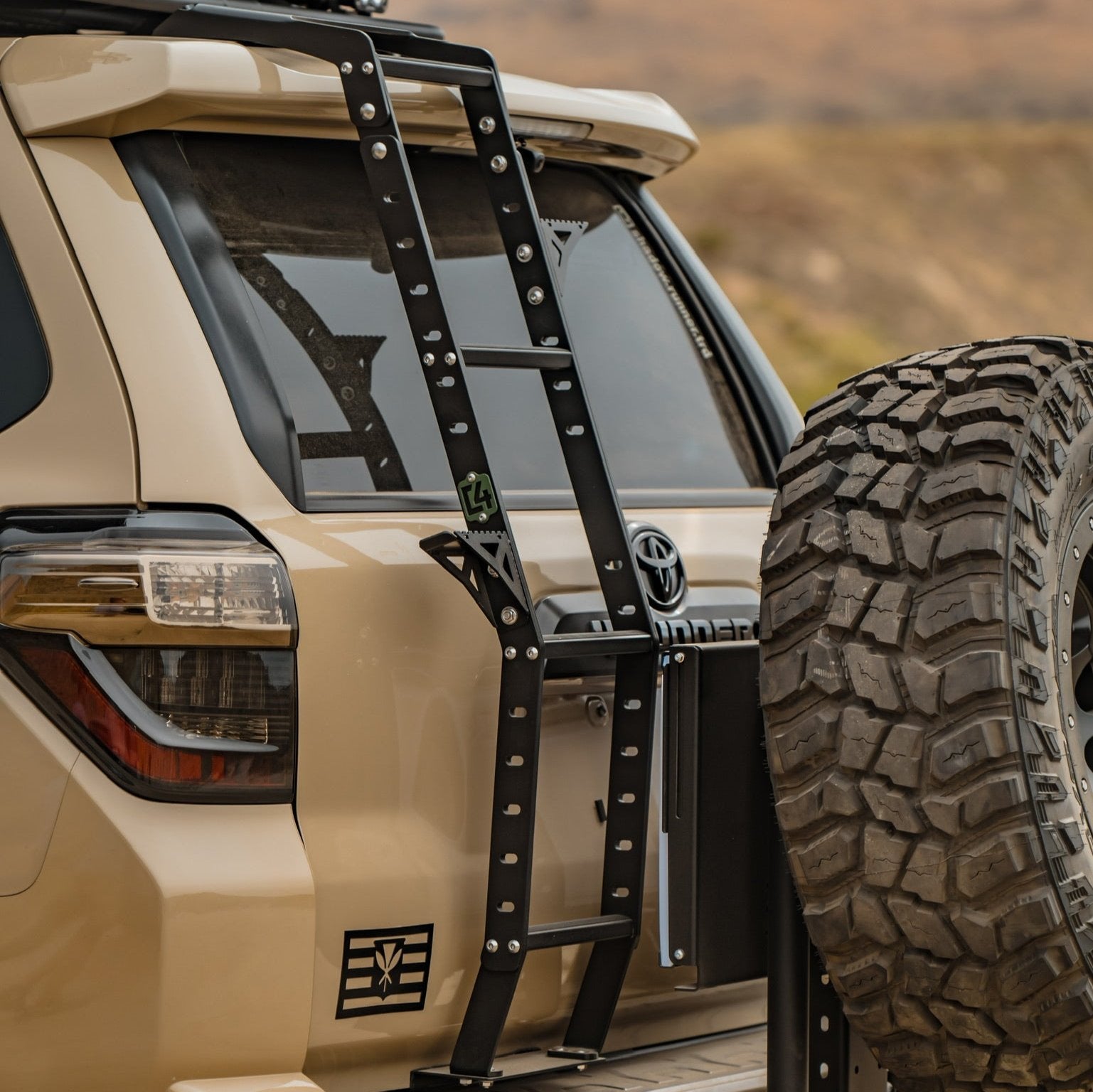

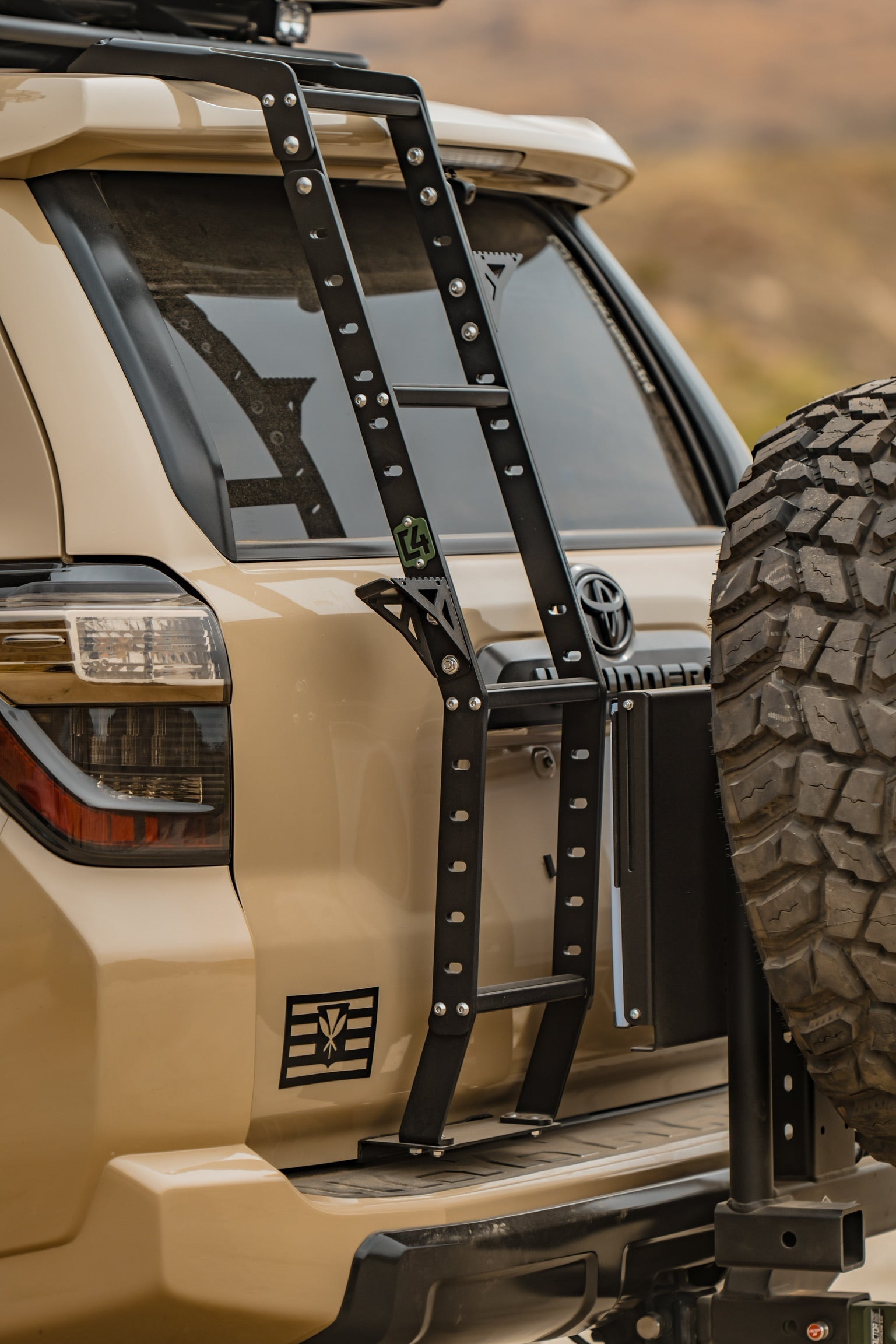

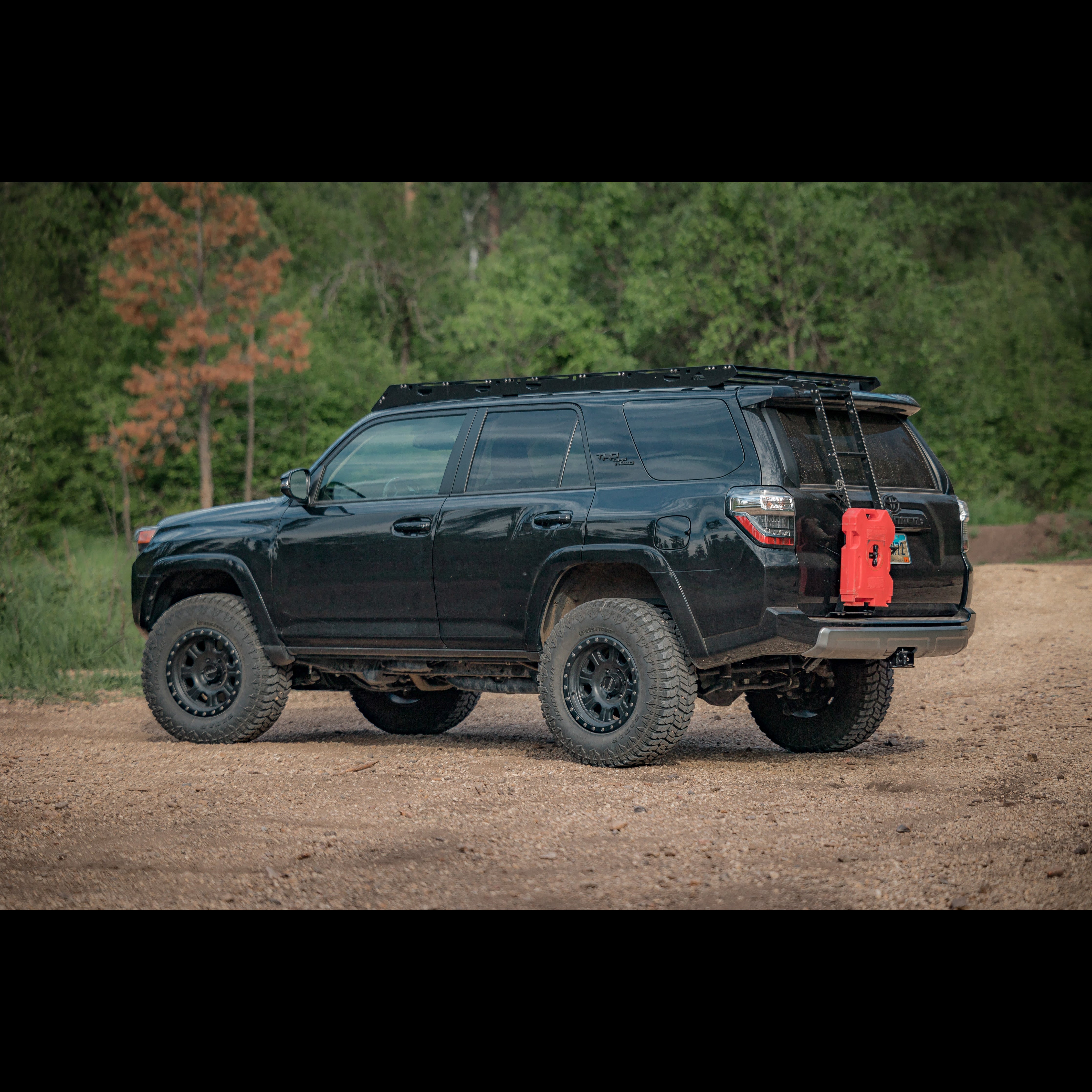

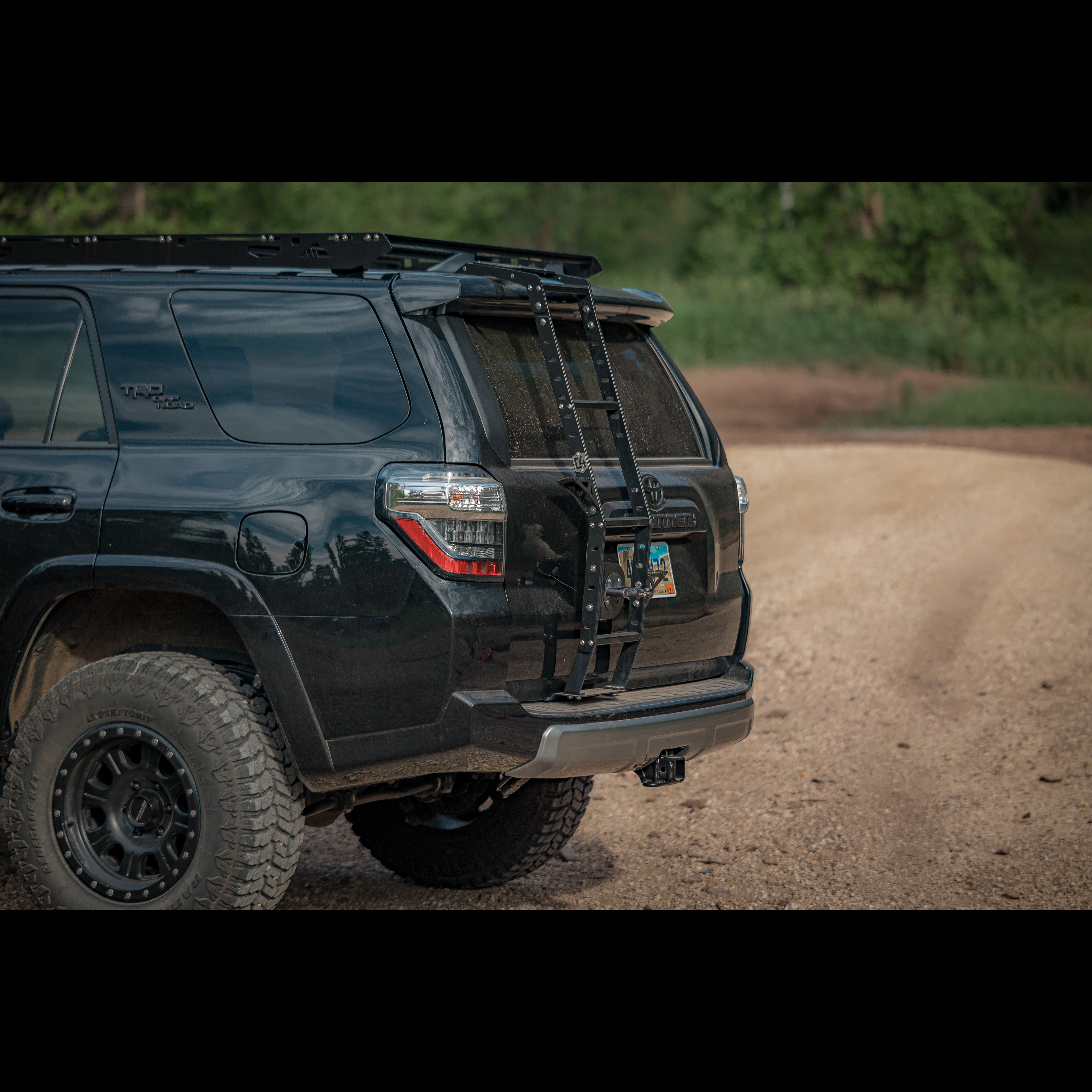

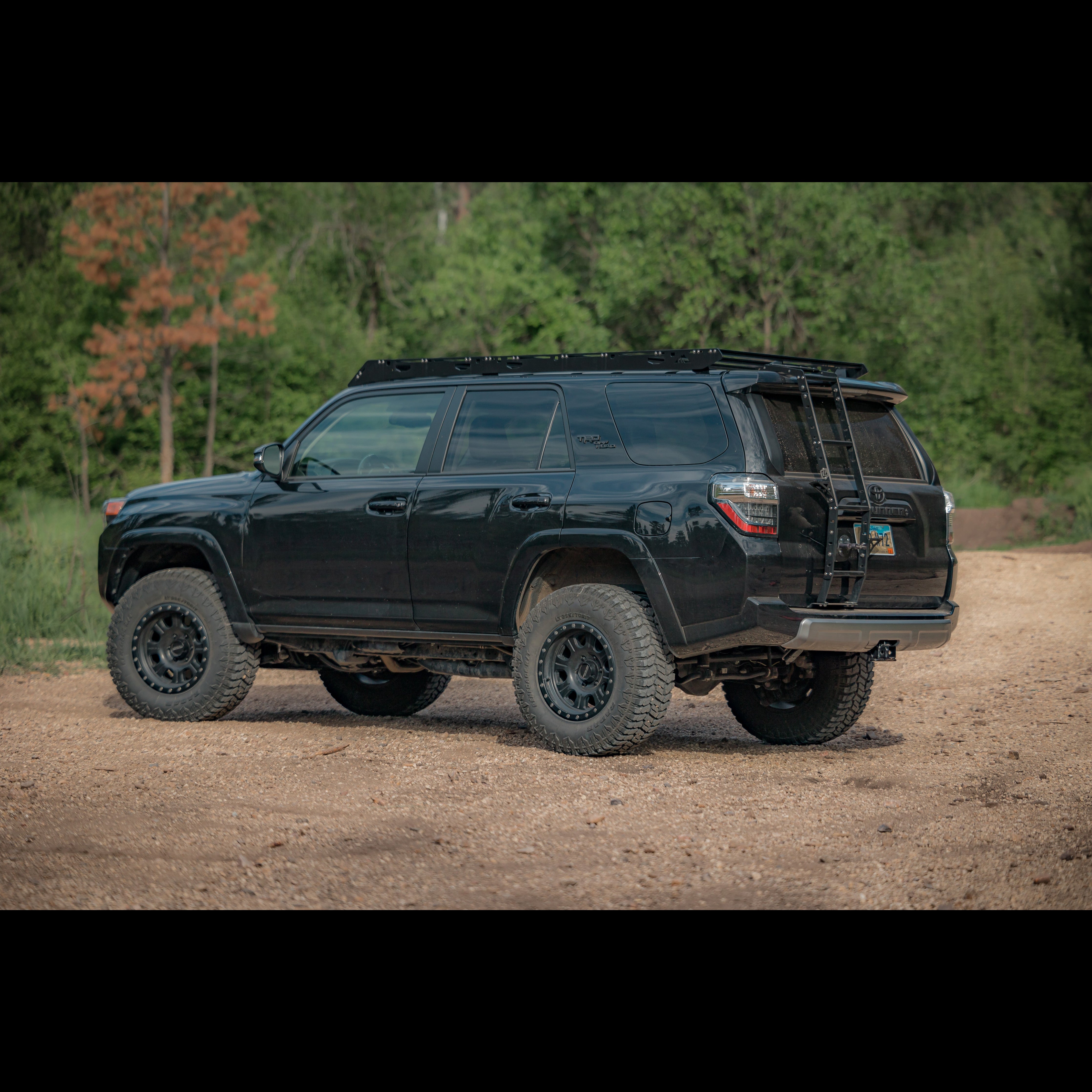

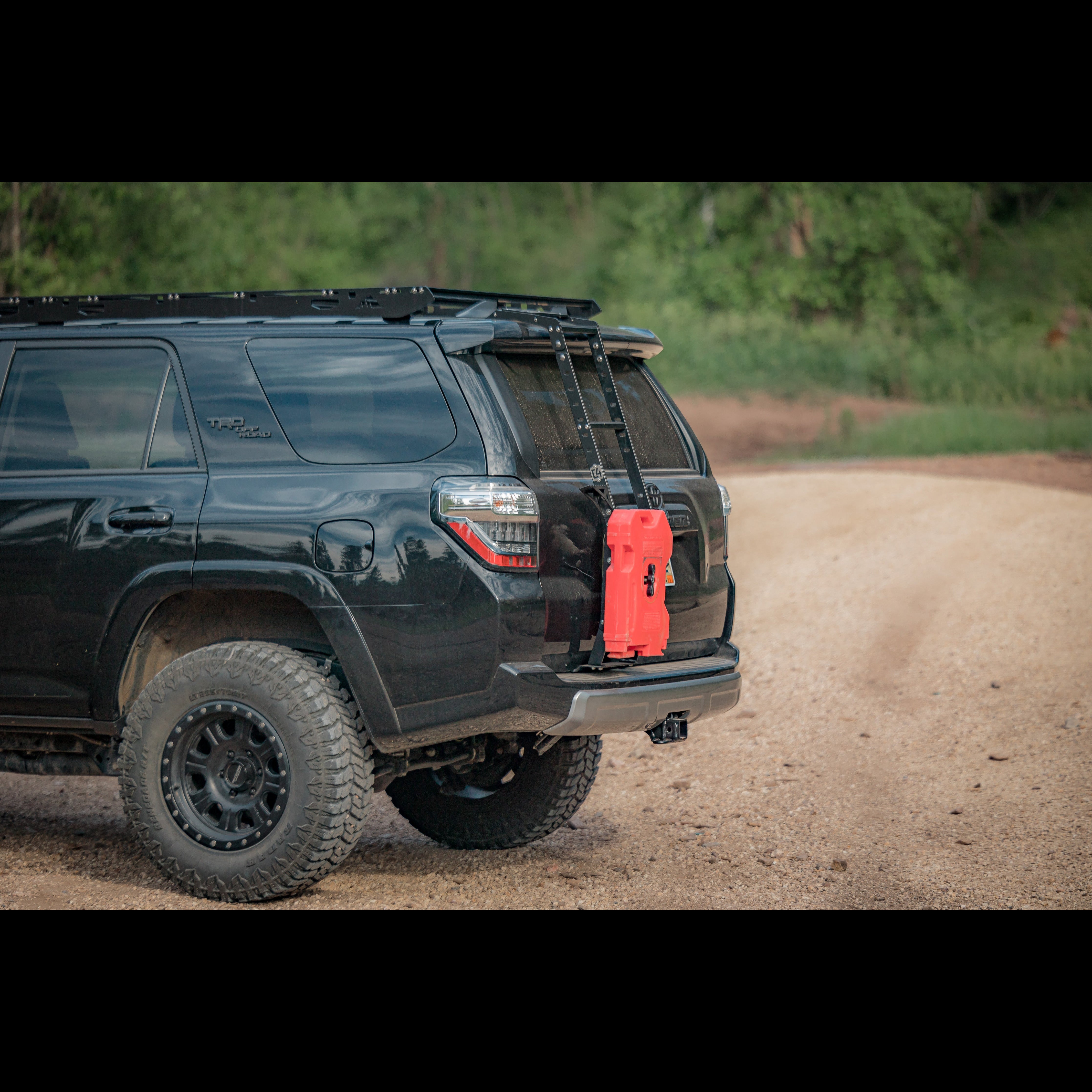

4Runner Summit Hatch Ladder / 5th Gen / 2010+

  • (Lead-Time)

        • All ladders & ladder parts come coated in Satin Black powder coat.
        • Ladders are known to be compatible with these roof racks: Sherpa Equipment Co., Frontrunner Slimline, Prinsu Design, SSO, TMT, Echotechne, Toyota TRD Pro, ARB
        • Does require drilling for lower ladder mount (more secure option, increases overall strength, replaces previous clamping strip)
        • Main structure and ladder steps made from aluminum.

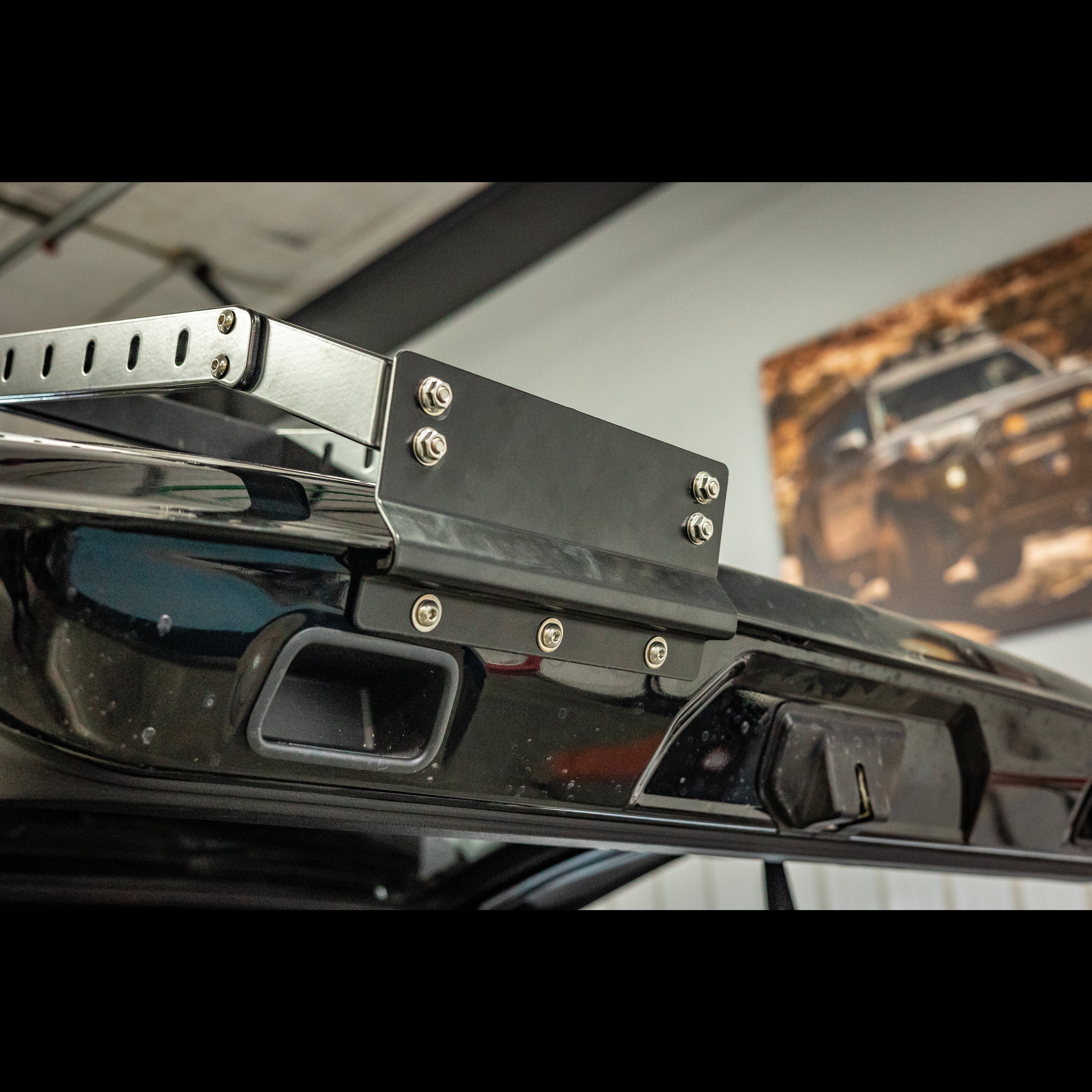

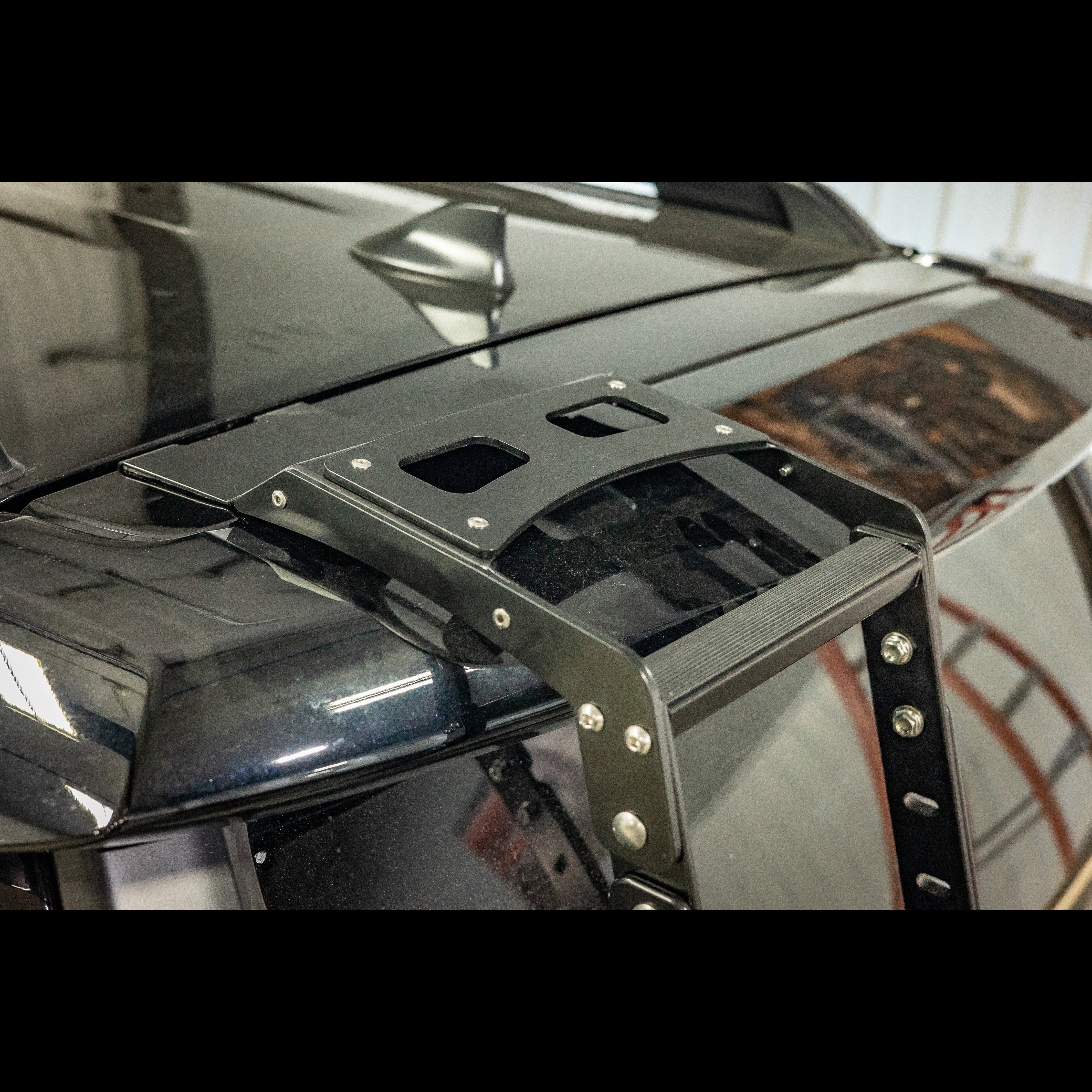

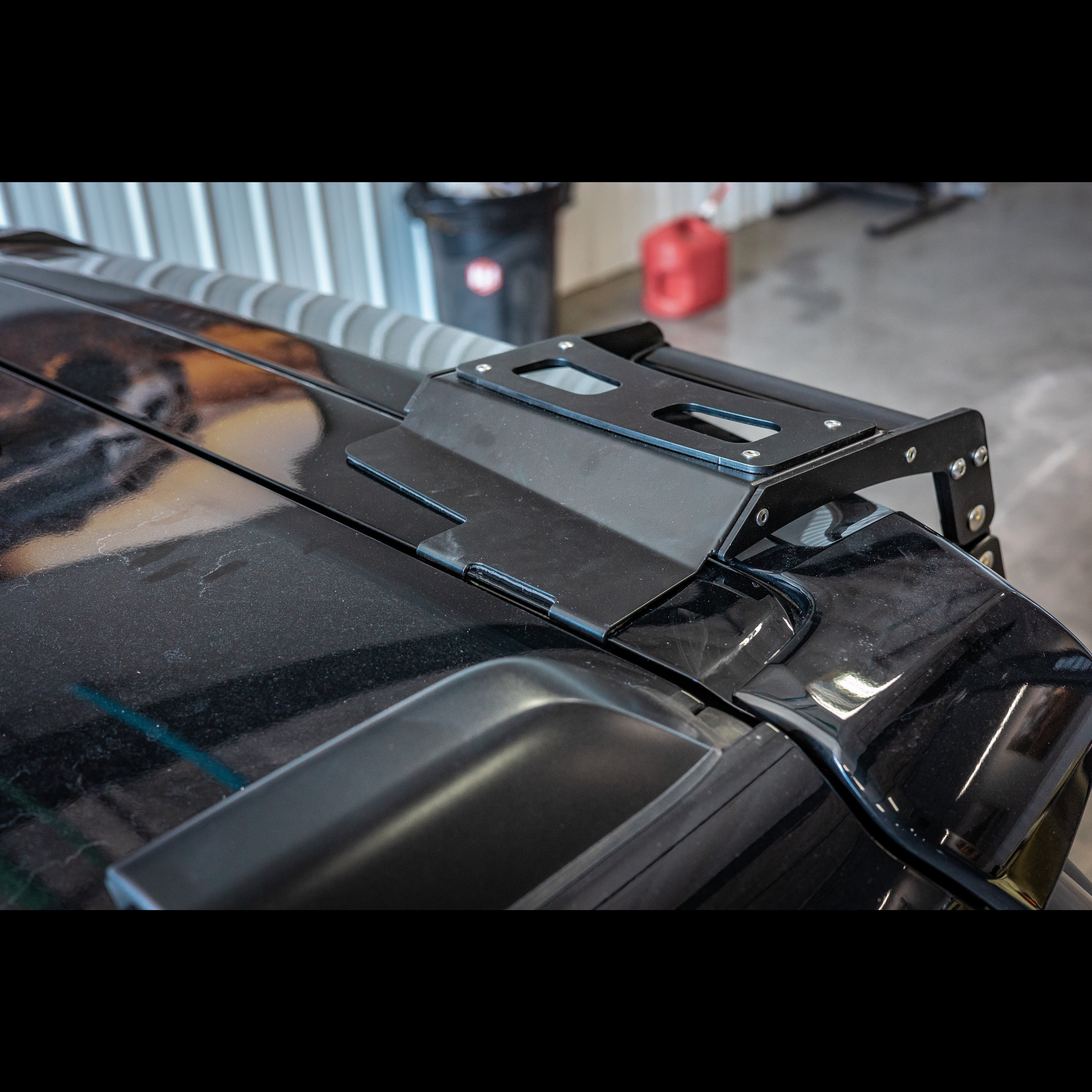

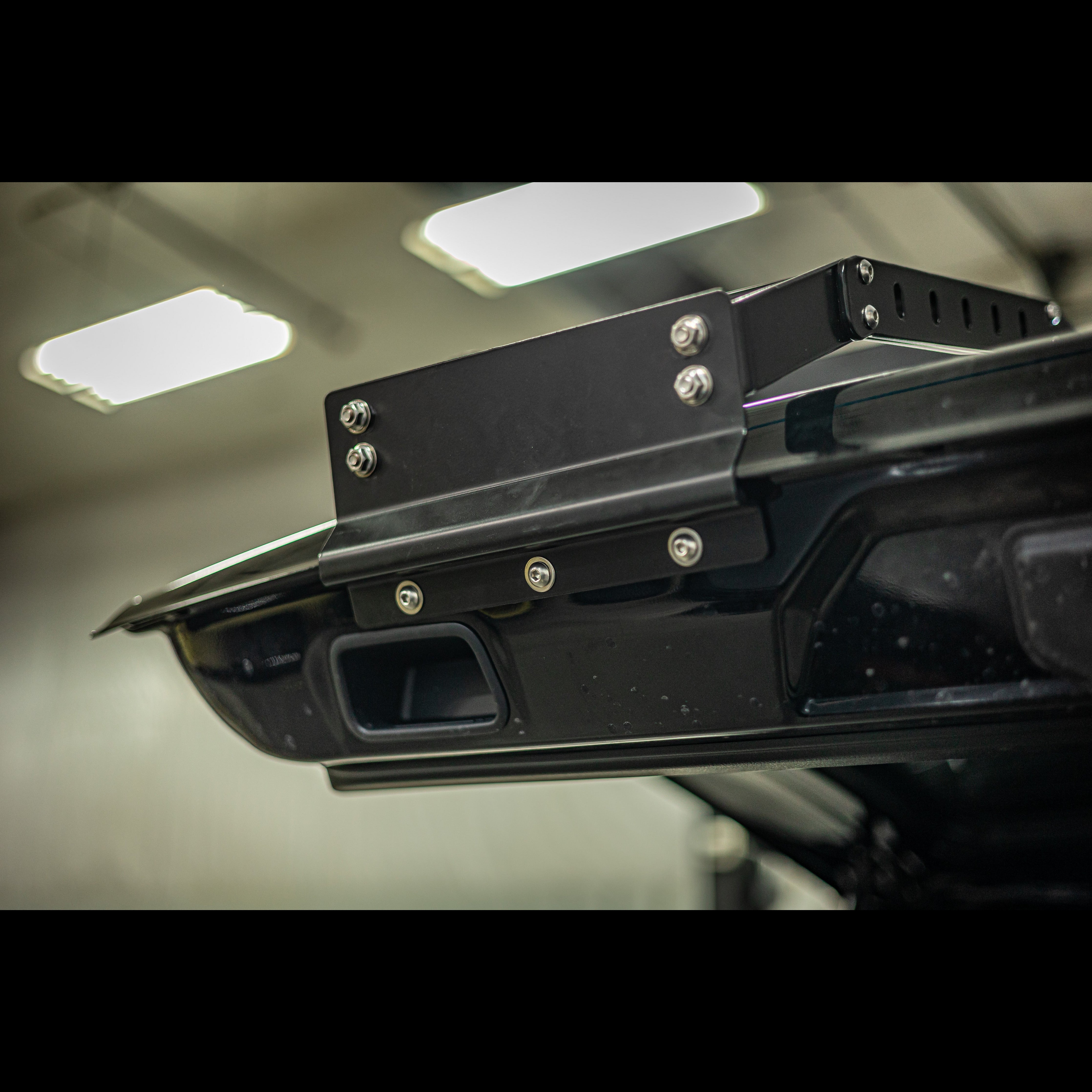

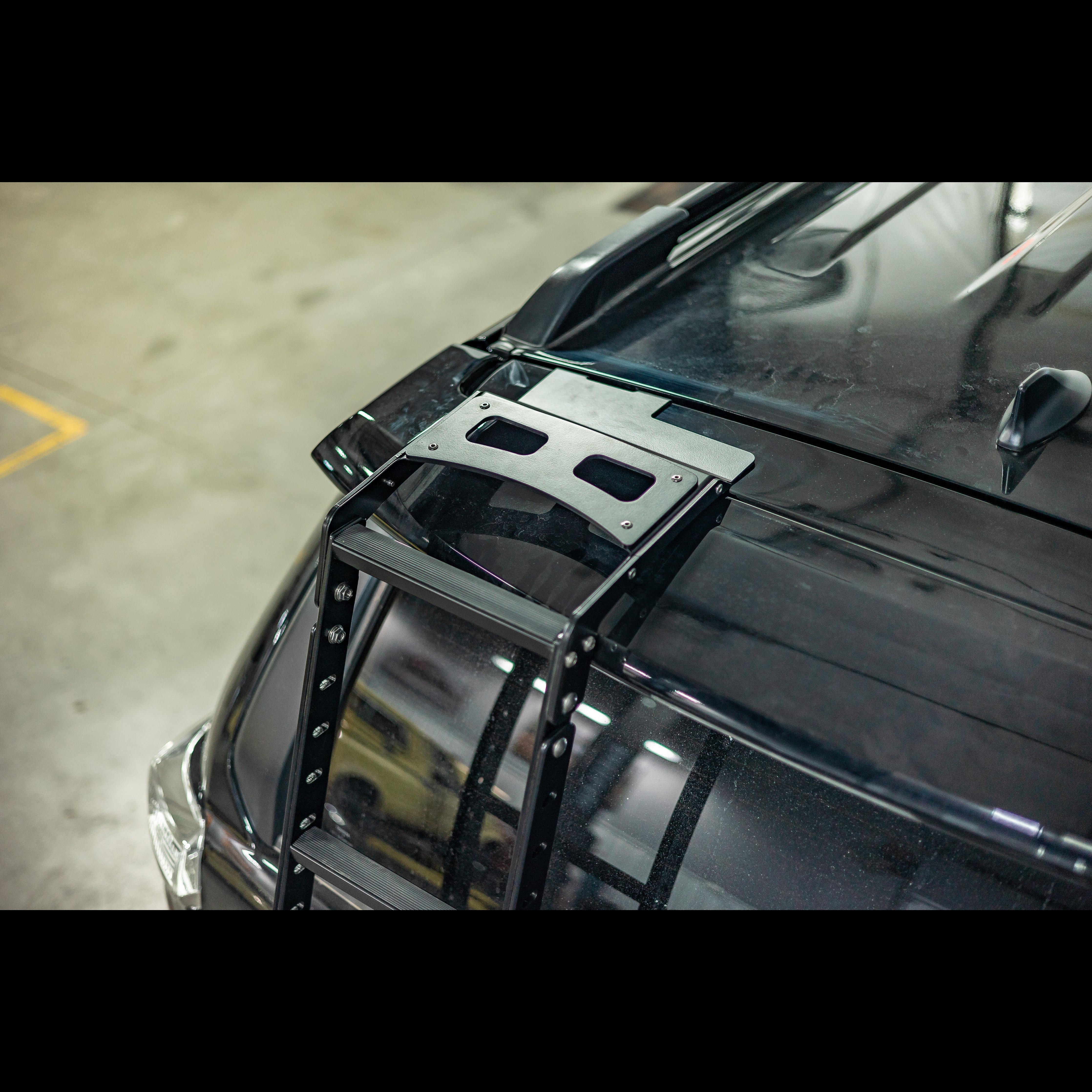

        • Ladder mounting brackets made from steel.

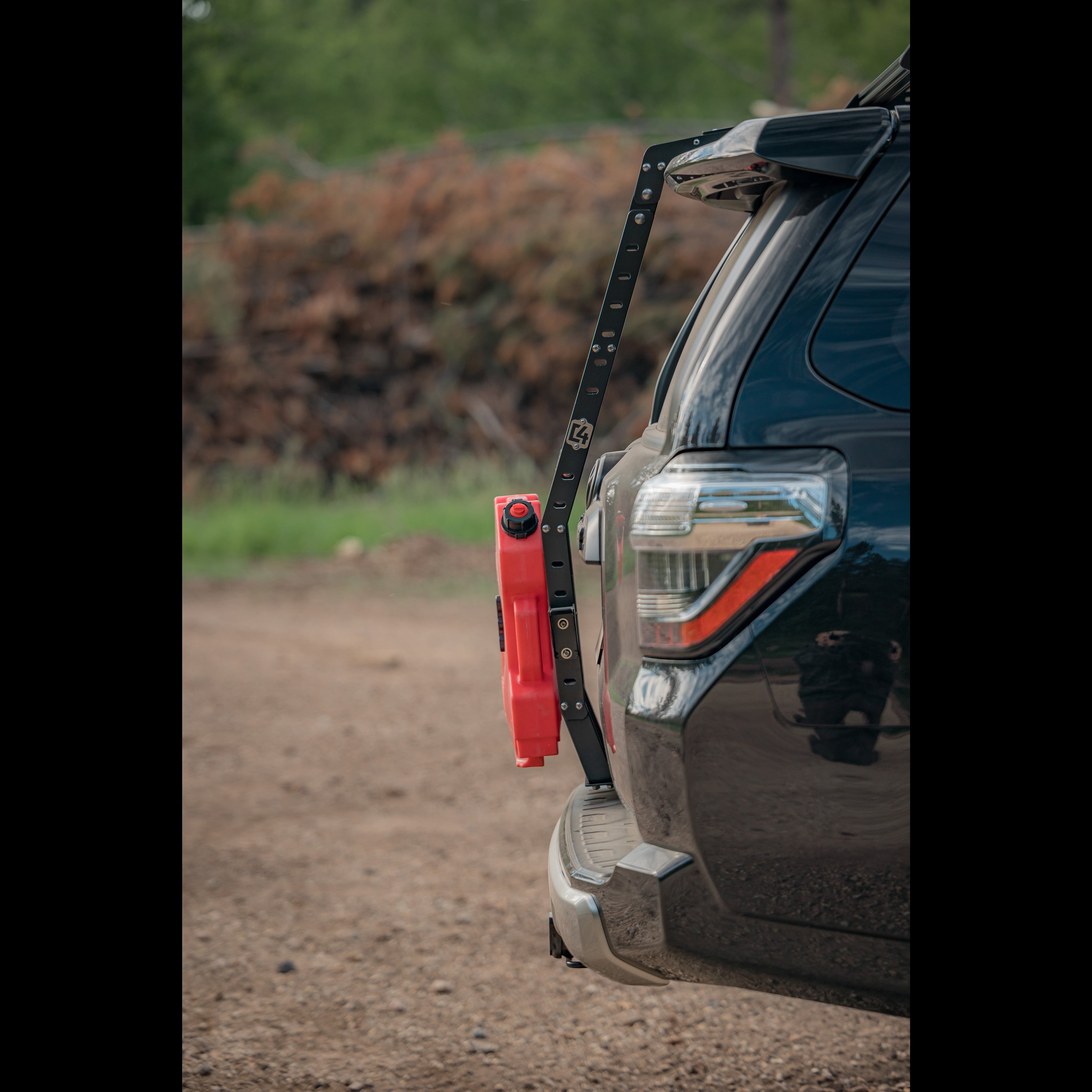

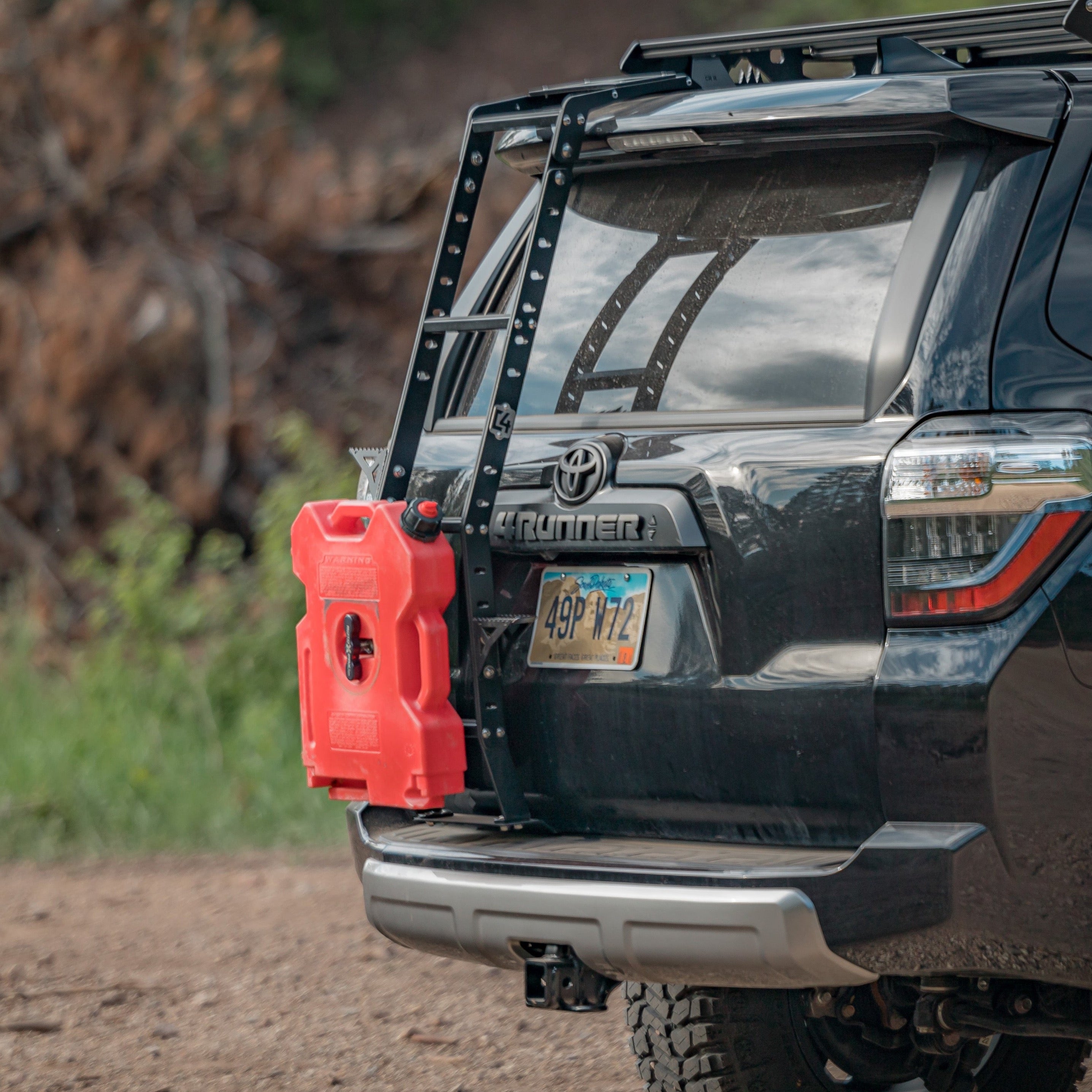

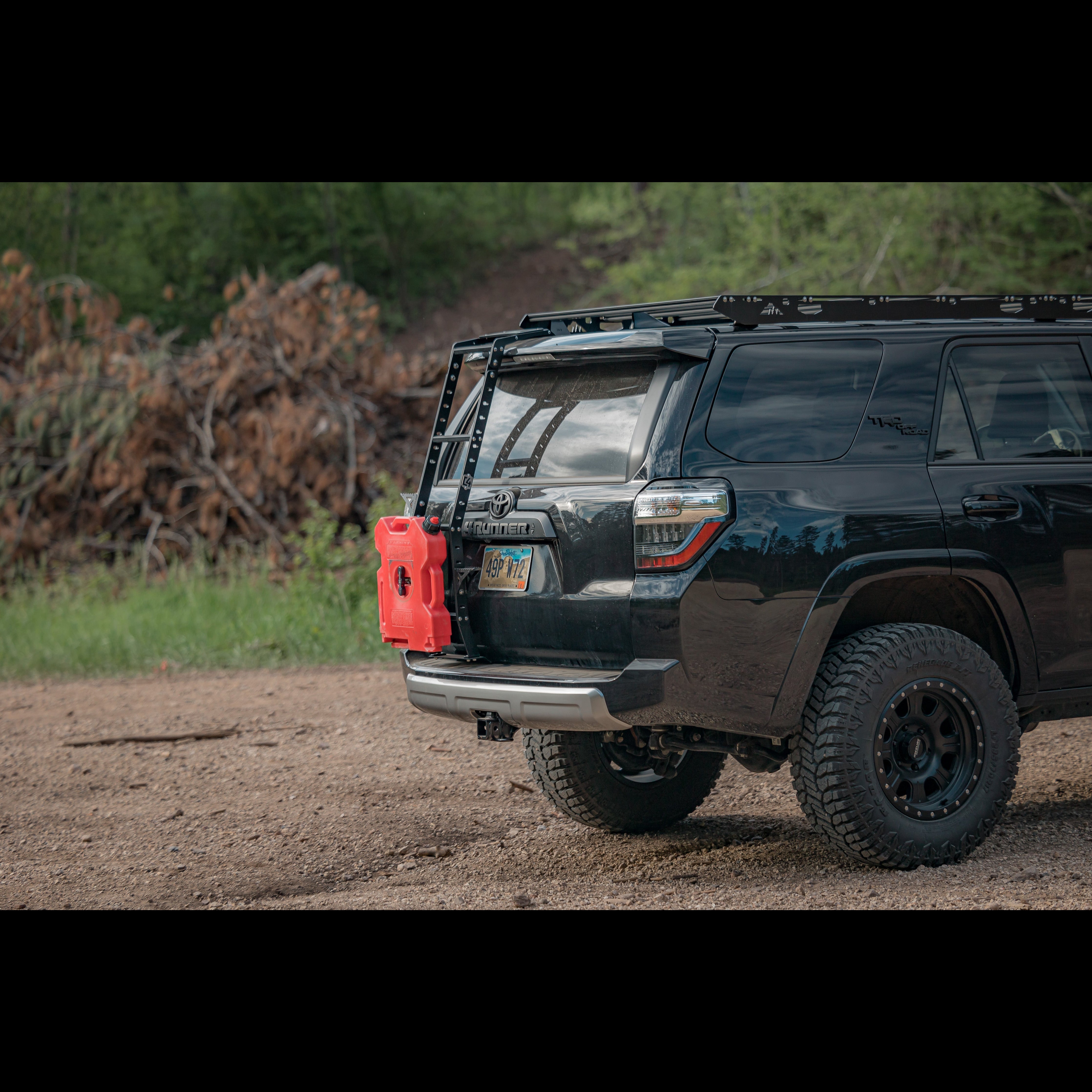

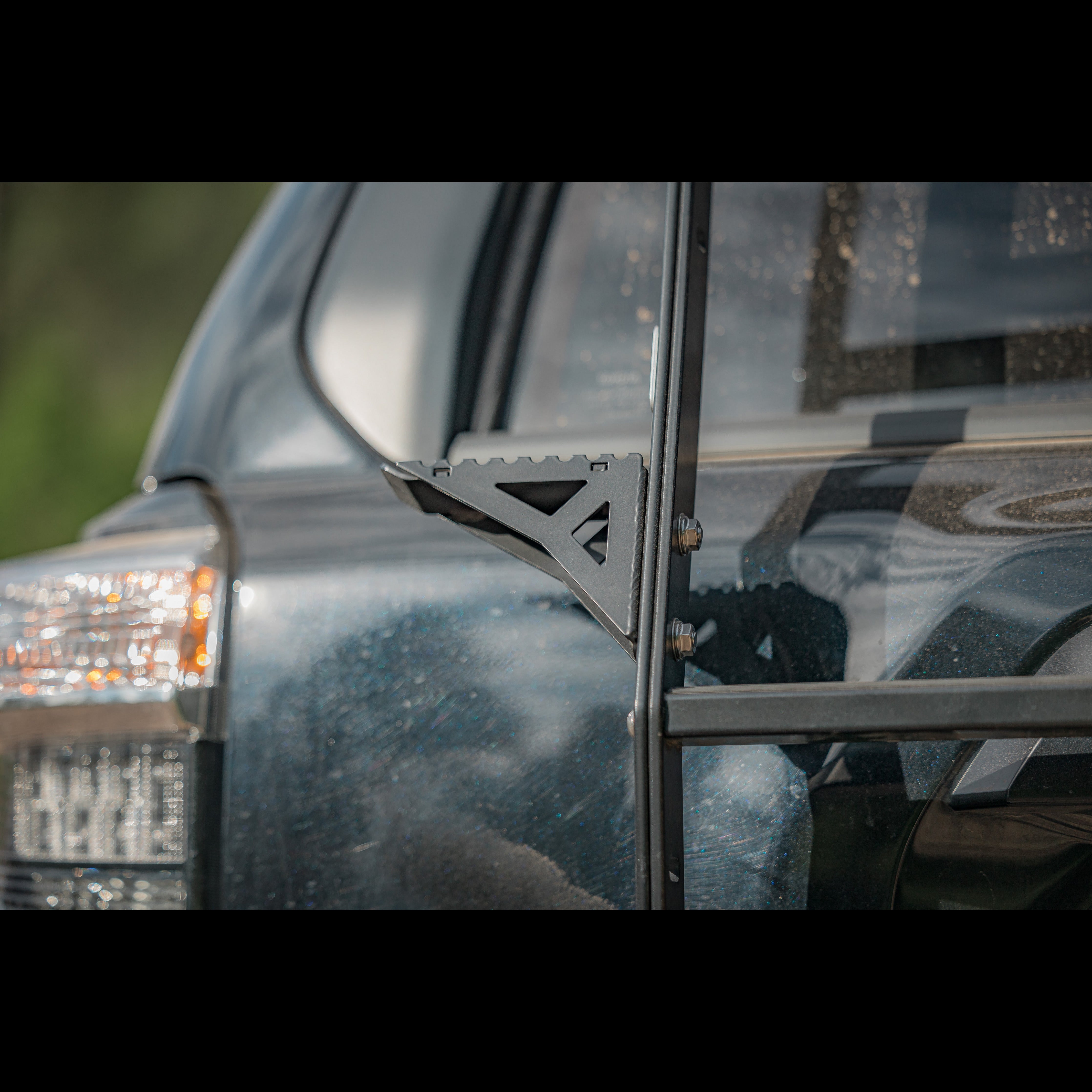

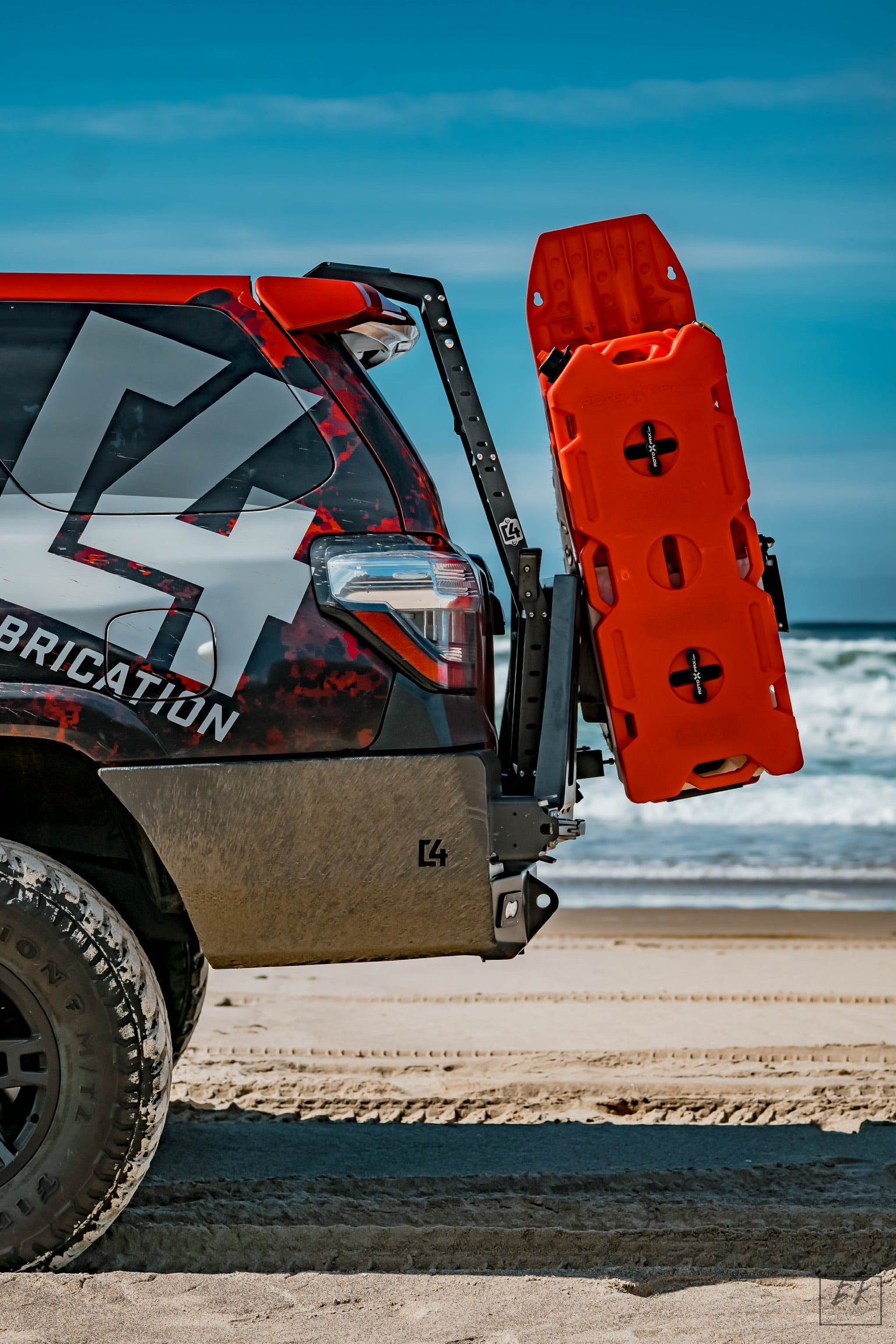

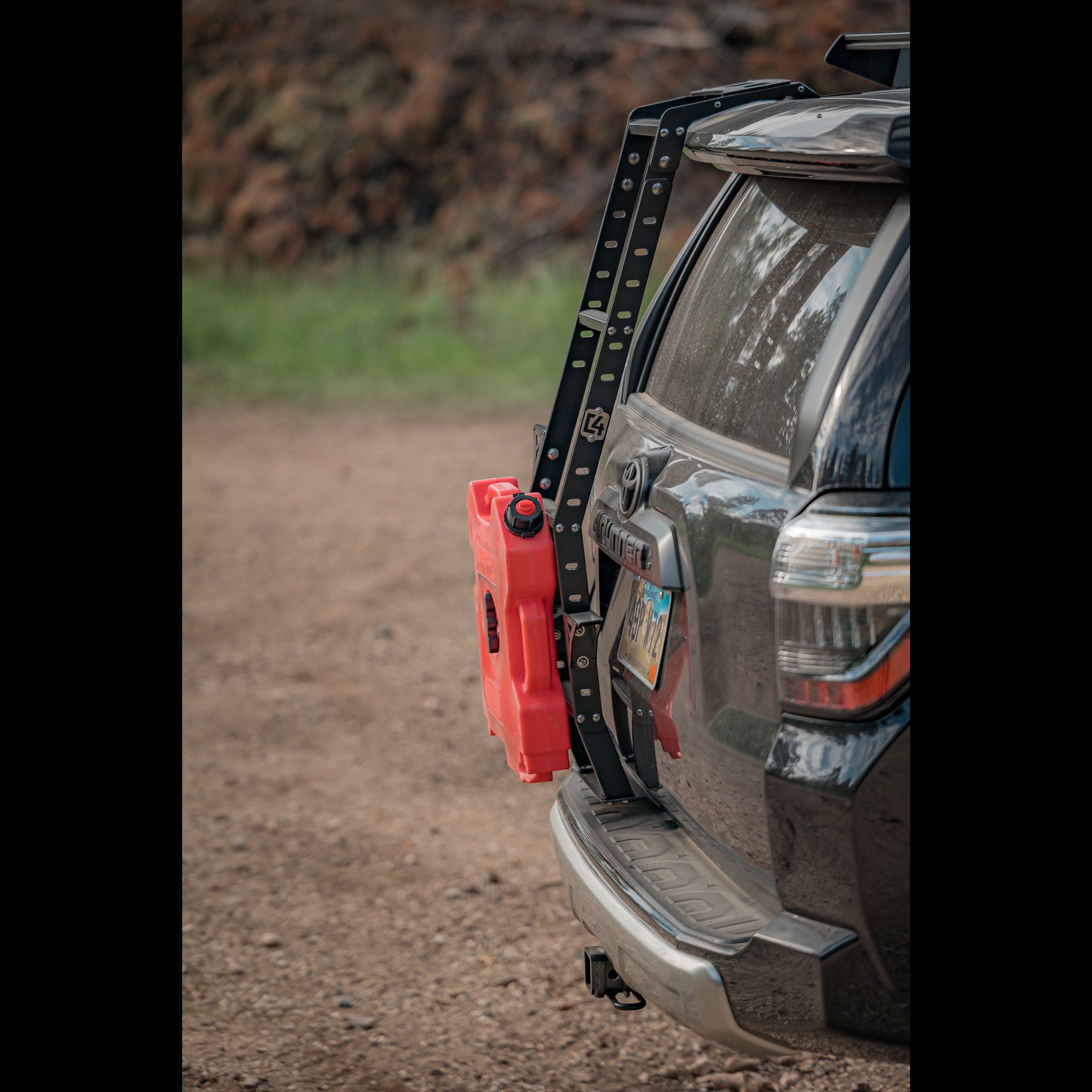

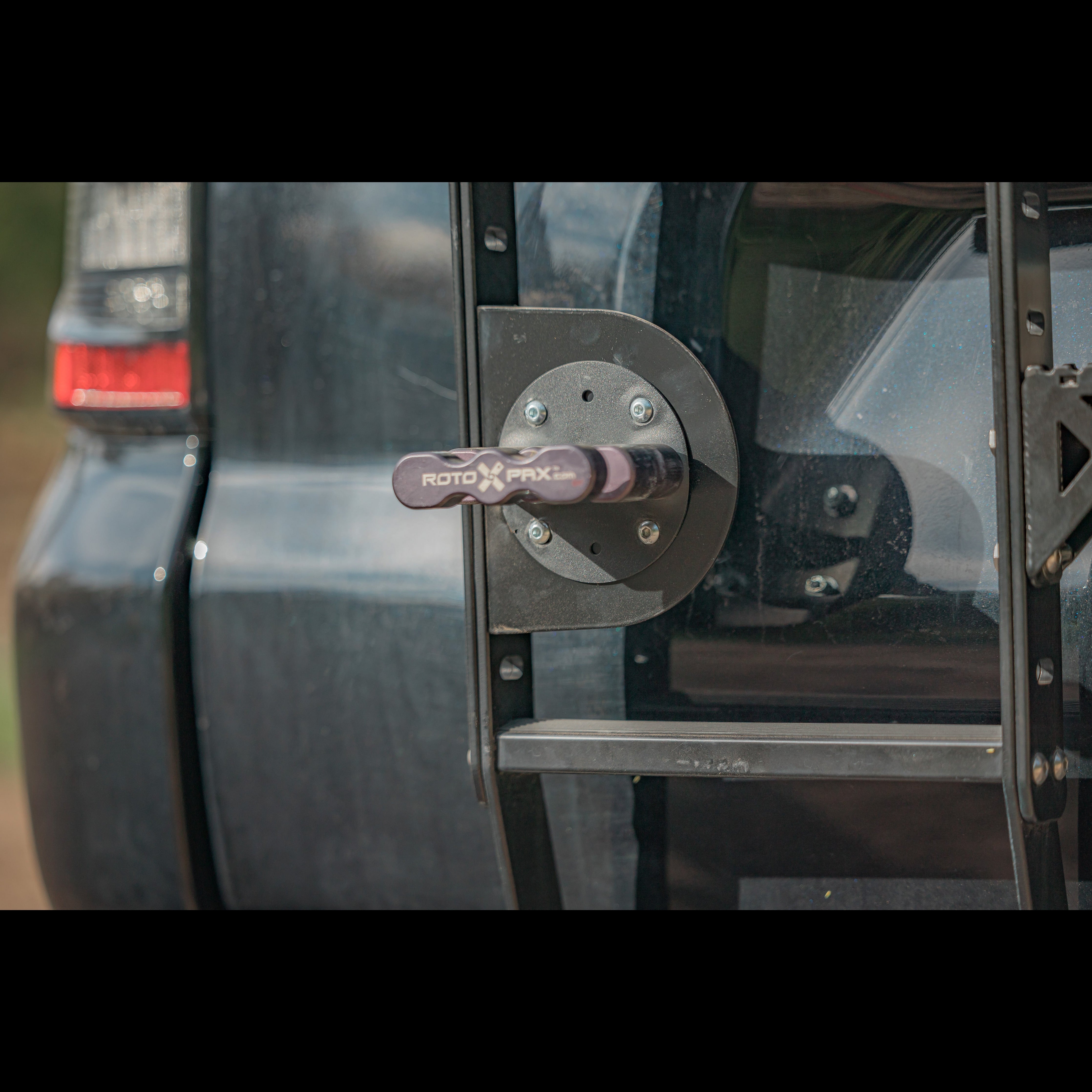

        • Optional ladder side steps and RotoPax brackets made from steel.
        • Stainless steel hardware.

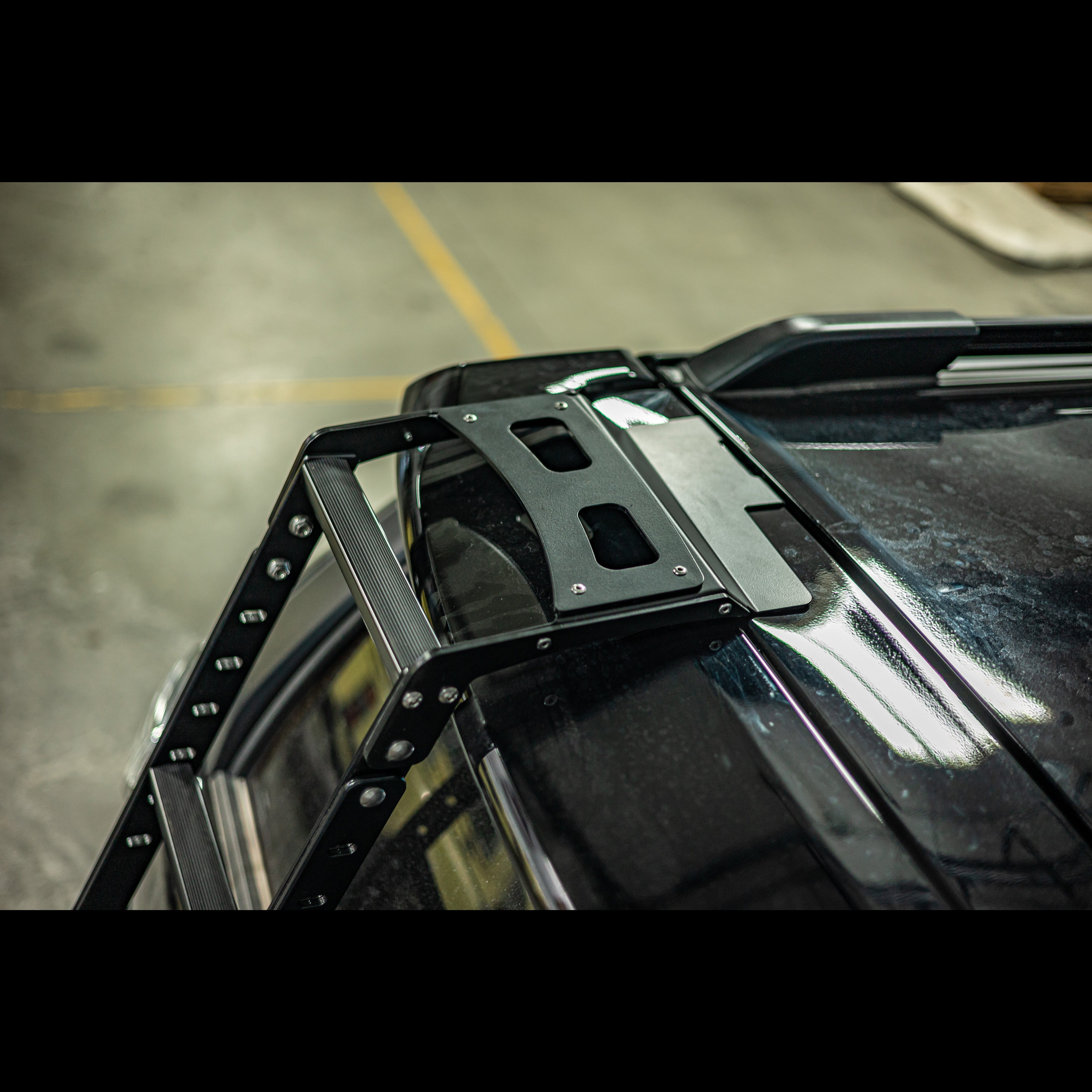

        • Main ladder steps made from extruded aluminum T-Slot.
        • Rubber tread strips included for a comfortable grippy stepping surface.

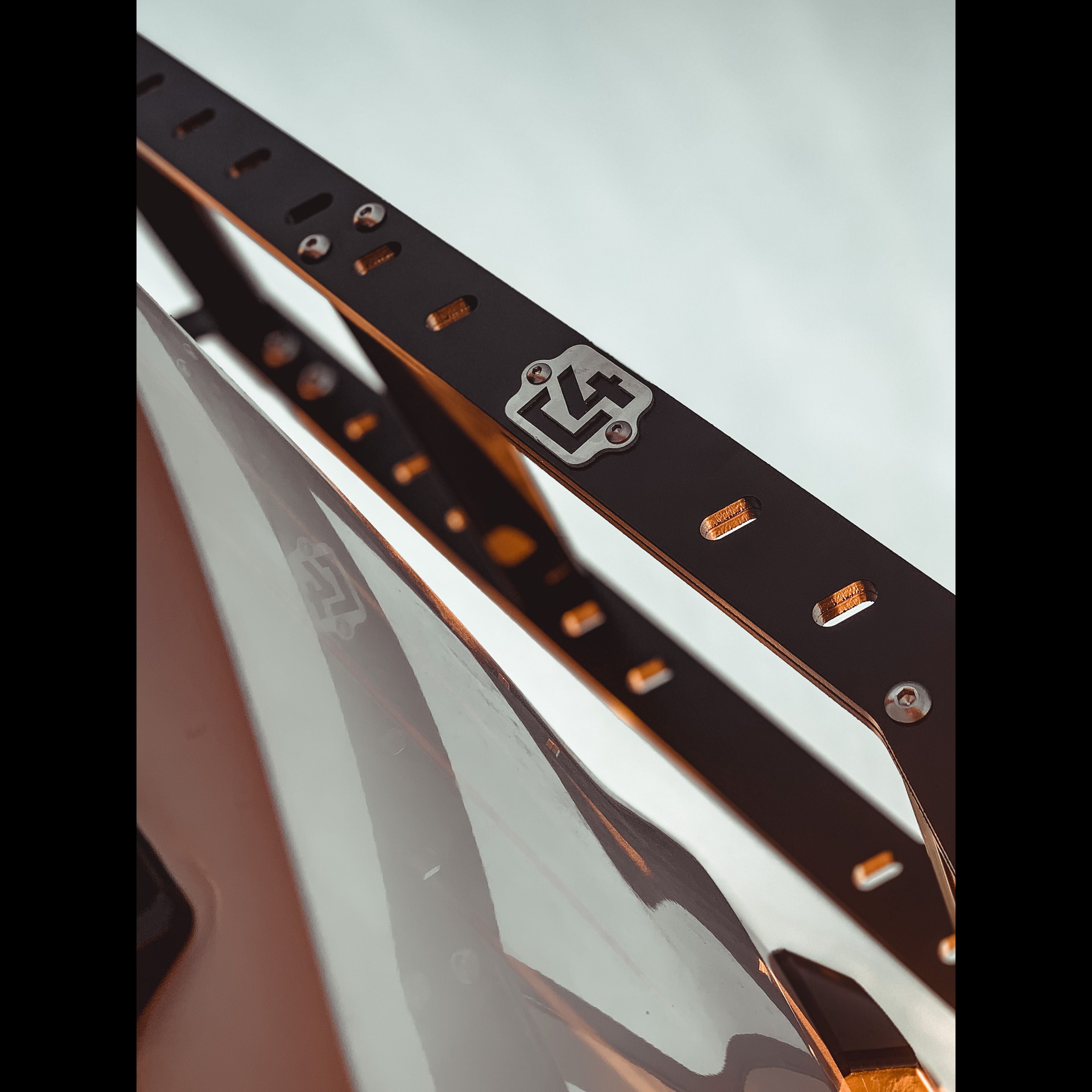

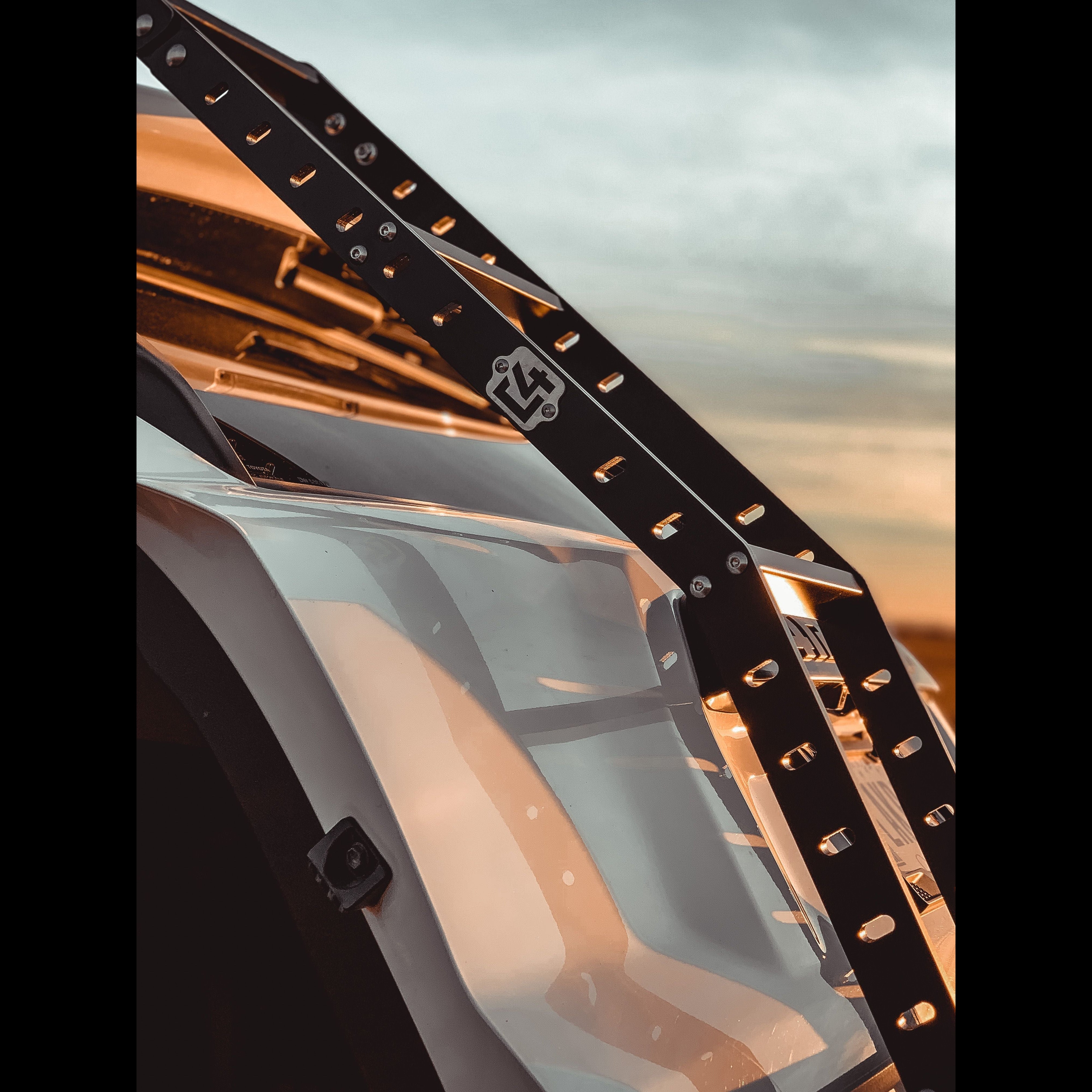

        • Slotted holes on each side of ladder frame make it easy to bolt on accessories.

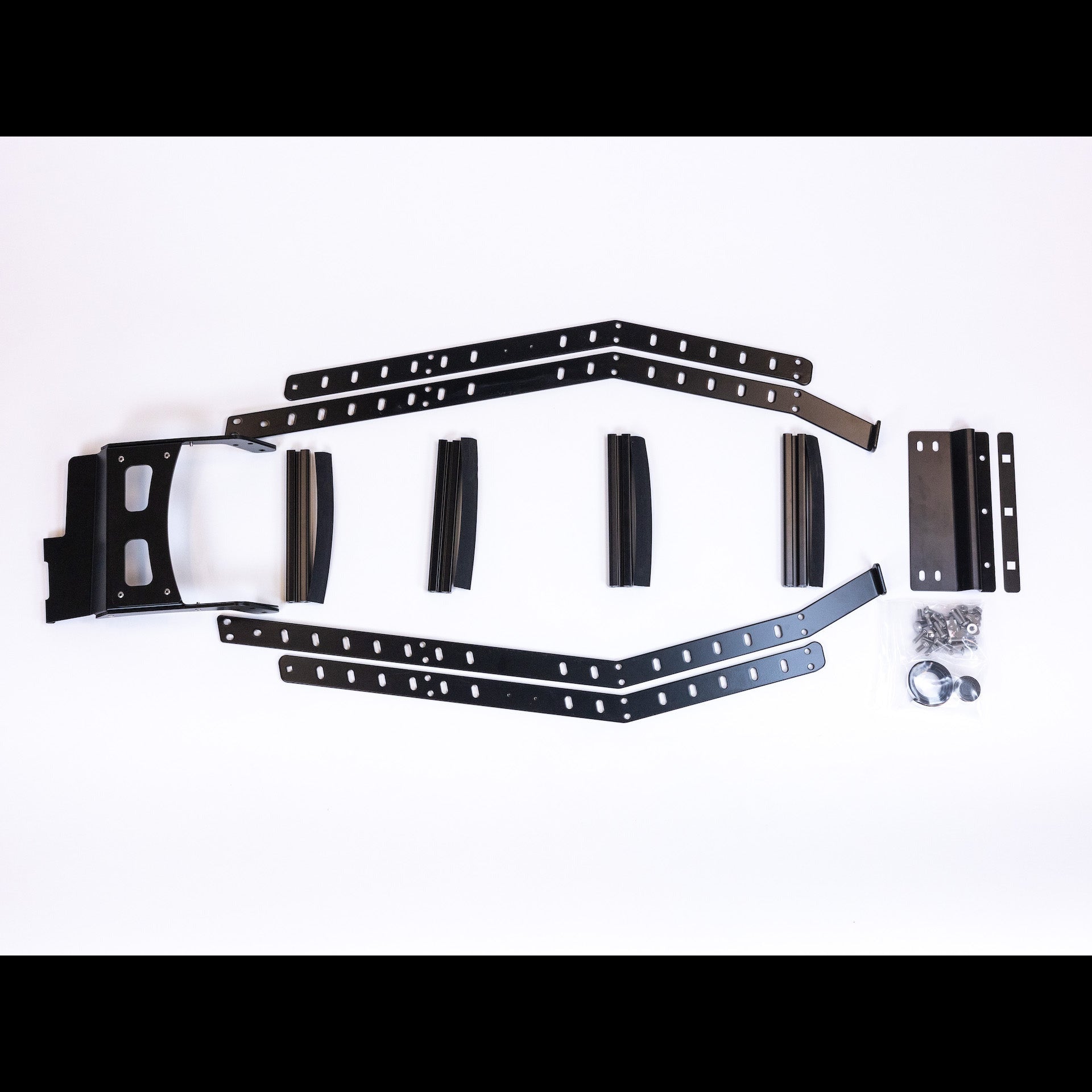

        • Ladder ships un-assembled.
        • All add-ons are made from steel.
        • 250lb static load rating.
        • 20lb dynamic load rating.
    Heavy duty hatch struts are not required for the base ladder by itself. HD struts will be needed if any accessories are added to the ladder.
    Recommended hatch struts CLICK HERE
