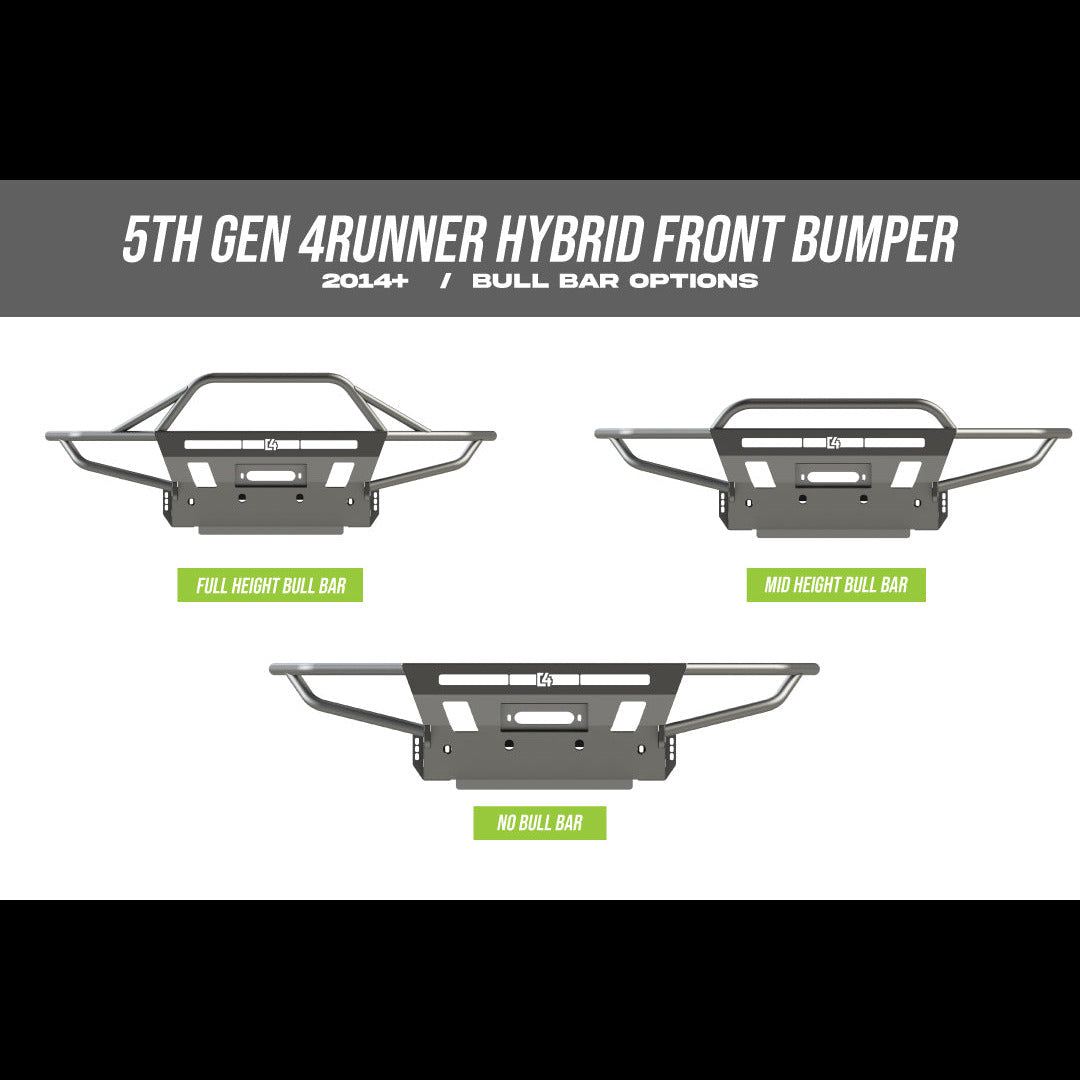

Digital render showing the three bull bar options for the C4 Hybrid bumper for the 5th Gen 4Runner, to include no bull bar, mid-height bull bar and full-height bull bar with tube gussets. Digital render showing the three bull bar options for the C4 Hybrid bumper for the 5th Gen 4Runner, to include no bull bar, mid-height bull bar and full-height bull bar with tube gussets.
Heavily modified 5th Gen 4Runner with amber lights all over to include the roof rack and the front winch bumper from C4 Fabrication. Heavily modified 5th Gen 4Runner with amber lights all over to include the roof rack and the front winch bumper from C4 Fabrication.

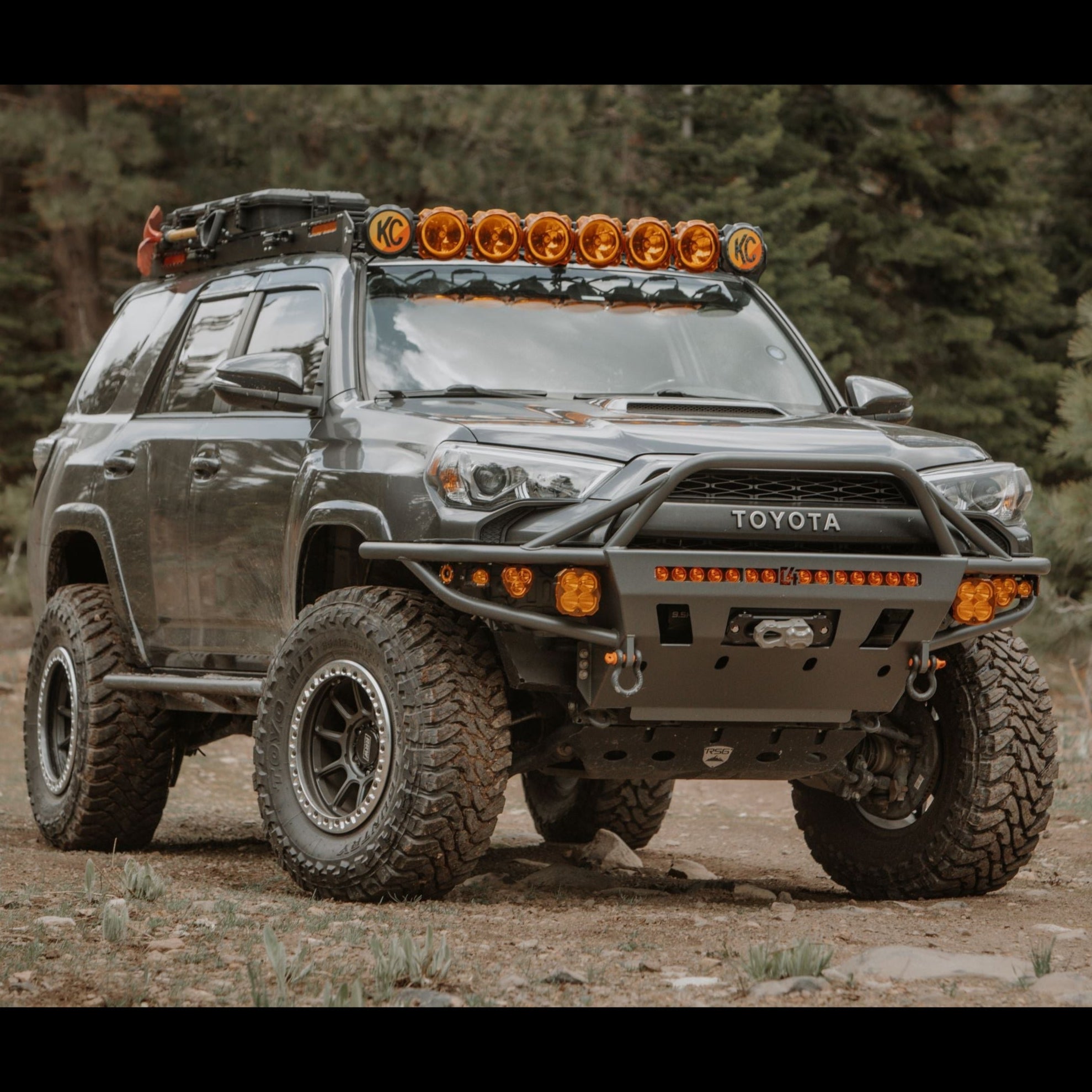

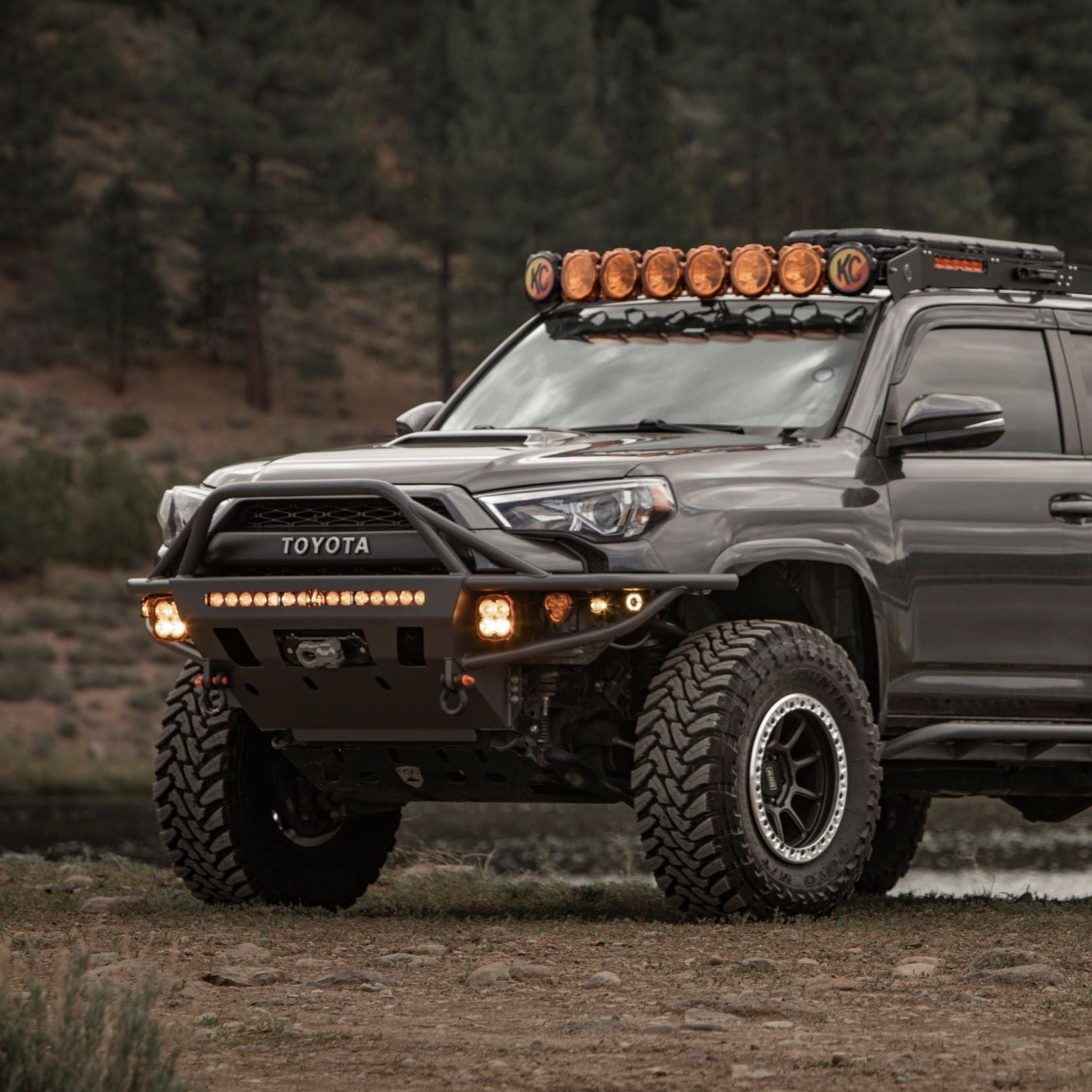

Quartering on view of a grey 4Runner in the mountains equipped with a C4 Hybrid bumper for the 5th Gen 4Runner with full-height bull bar and tube gussets. Quartering on view of a grey 4Runner in the mountains equipped with a C4 Hybrid bumper for the 5th Gen 4Runner with full-height bull bar and tube gussets.
5th Gen 4Runner with the low bull bar version of the C4 Hybrid winch bumper. 5th Gen 4Runner with the low bull bar version of the C4 Hybrid winch bumper.

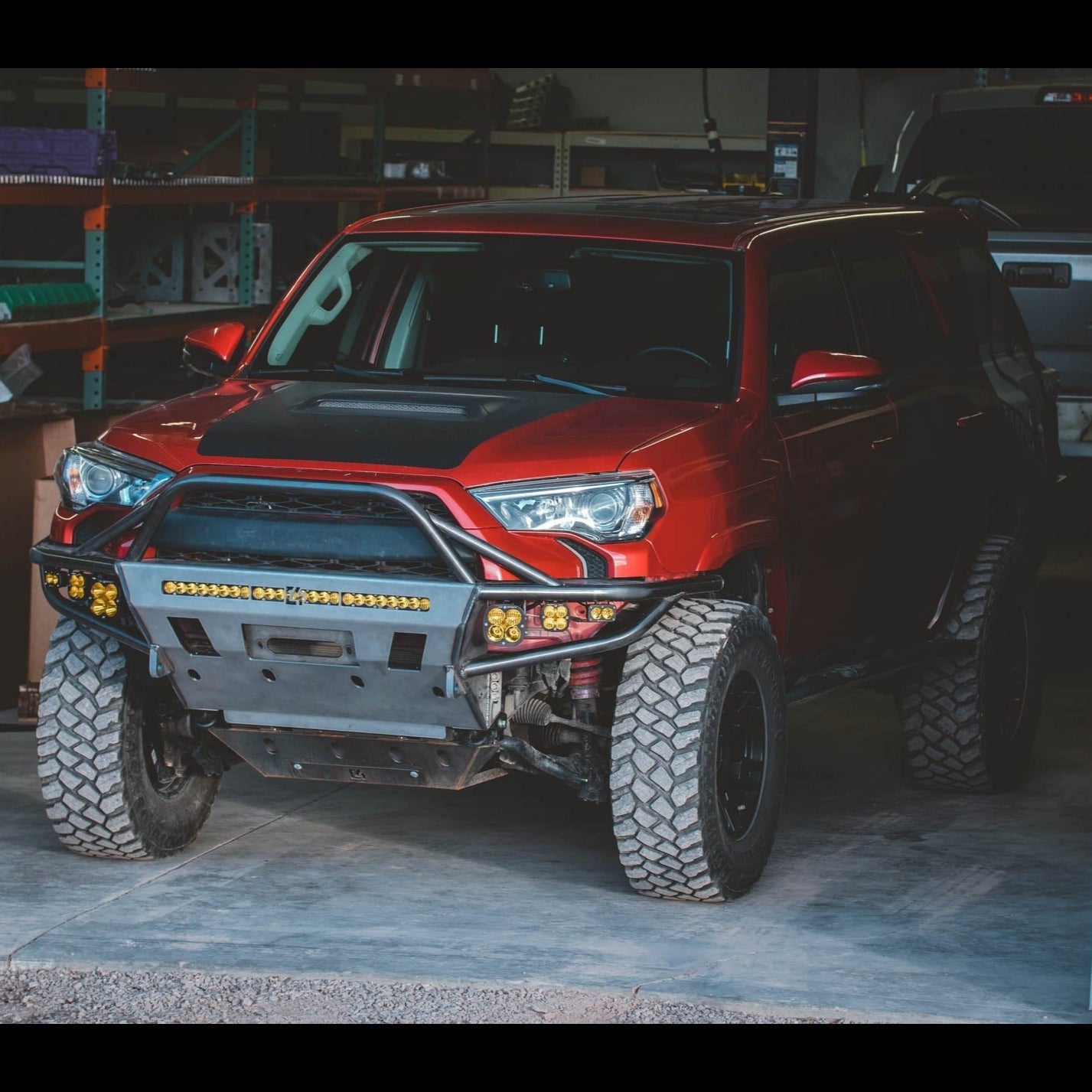

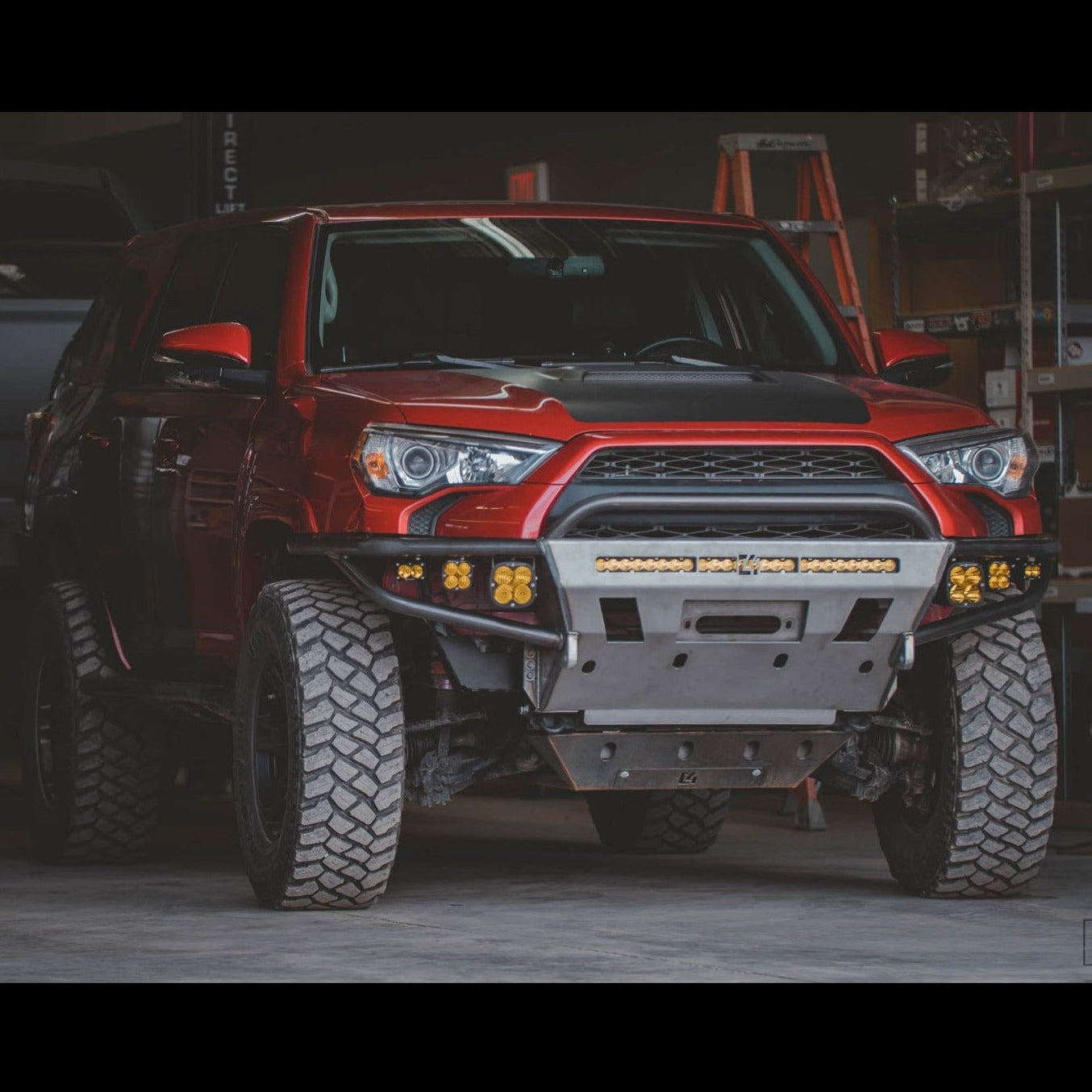

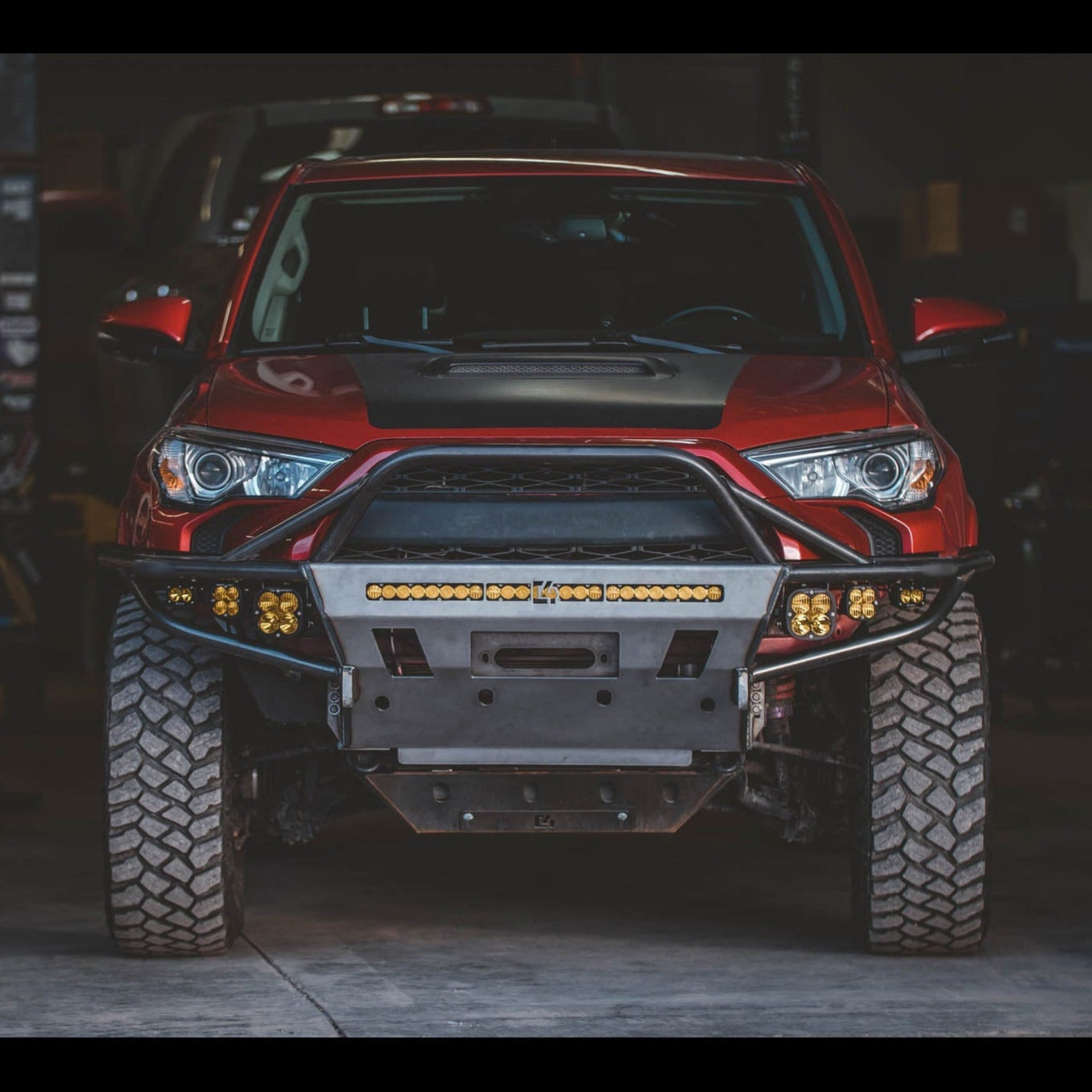

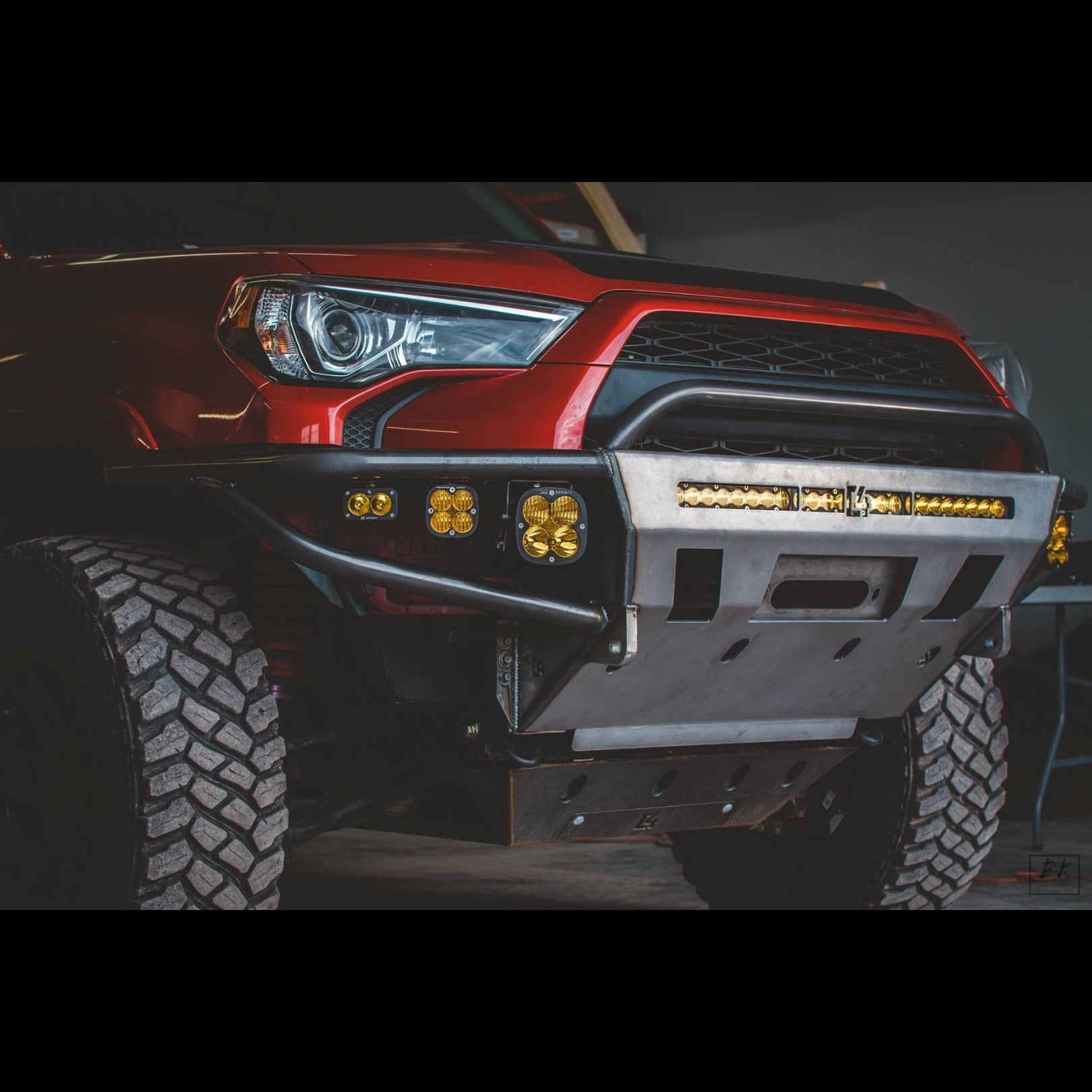

Shadowy photo of a red 4Runner with a C4 Hybrid bumper still in the raw metal finish that all C4 bumpers and armor ship in. Shadowy photo of a red 4Runner with a C4 Hybrid bumper still in the raw metal finish that all C4 bumpers and armor ship in.
Shadowy photo of a 5th Gen 4Runner with a C4 Hybrid bumper with full-height bull bar and a full complement of aftermarket LED lighting. Shadowy photo of a 5th Gen 4Runner with a C4 Hybrid bumper with full-height bull bar and a full complement of aftermarket LED lighting.
Driver's side quartering on angle showing the C4 Hybrid winch bumper for the 2014+ Toyota 4Runner. Driver's side quartering on angle showing the C4 Hybrid winch bumper for the 2014+ Toyota 4Runner.
Black Toyota 4Runner spanning a dirt crevasse and equipped with the Hybrid tube/plate bumper manufactured by C4 Fabrication in Sturgis, SD. Black Toyota 4Runner spanning a dirt crevasse and equipped with the Hybrid tube/plate bumper manufactured by C4 Fabrication in Sturgis, SD.

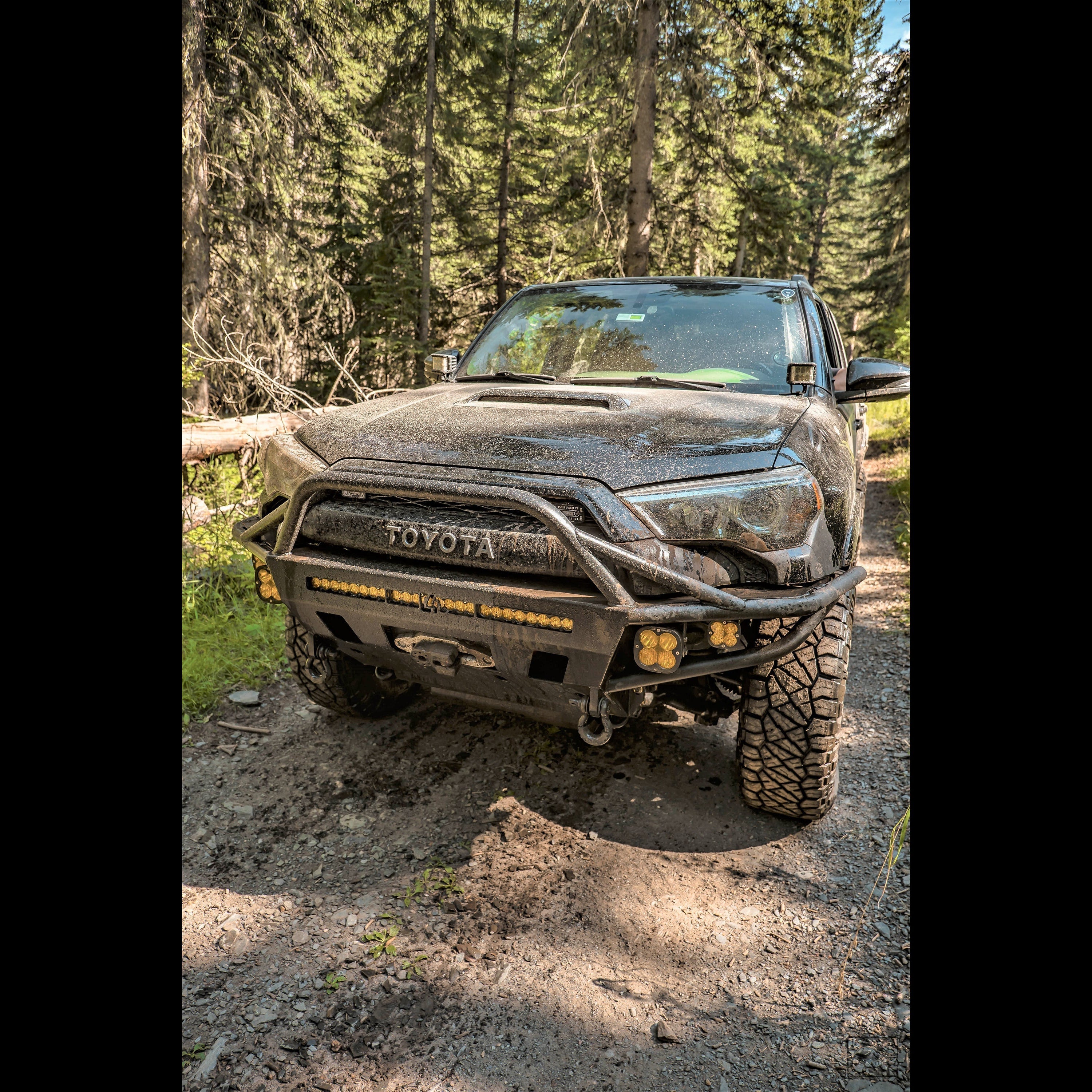

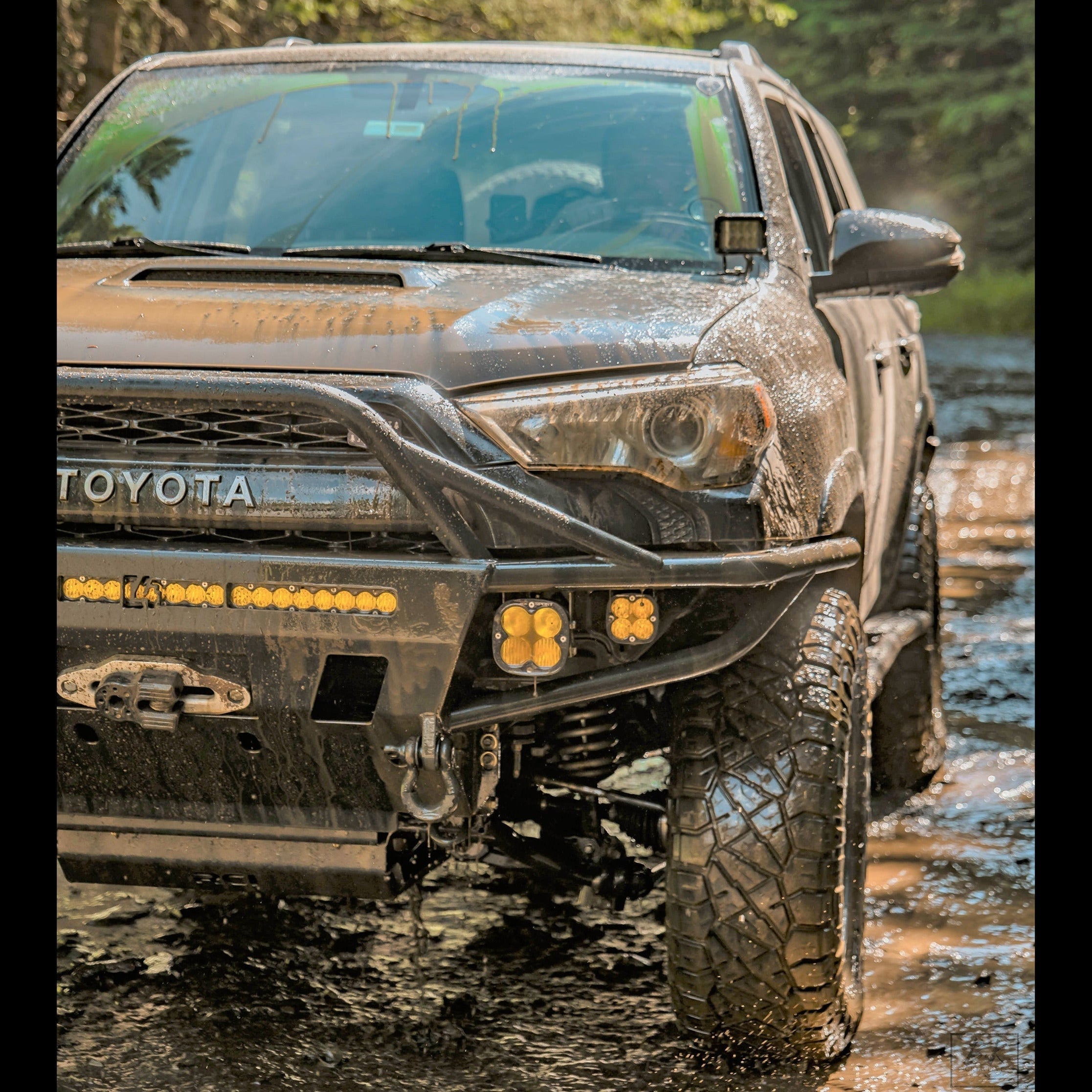

The muddy front end of a 2014+ 4Runner while offroading and equipped with a C4 Hybrid winch bumper. The muddy front end of a 2014+ 4Runner while offroading and equipped with a C4 Hybrid winch bumper.

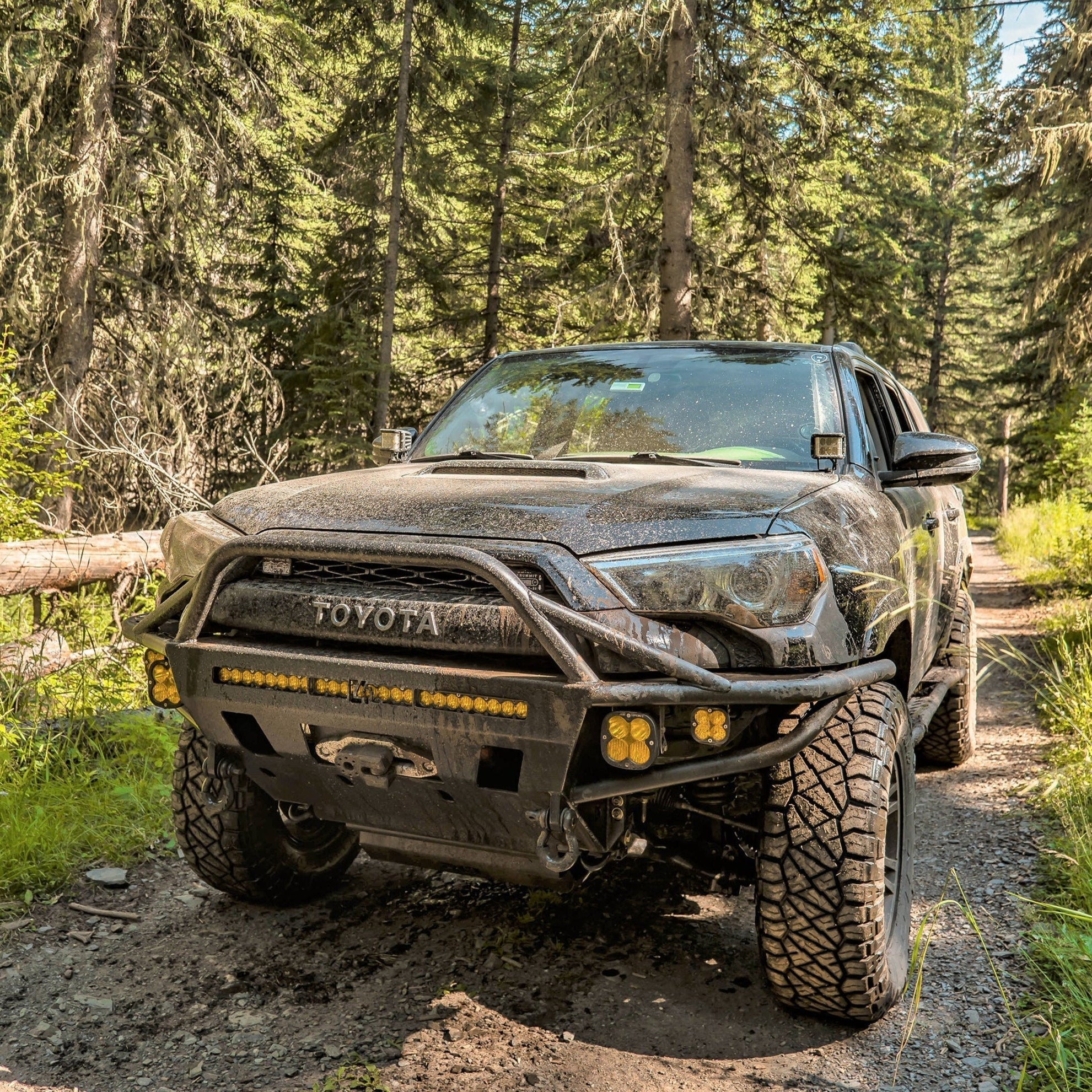

Quartering on photo of a muddy 5th Gen 4Runner equipped with a C4 Hybrid bumper. Quartering on photo of a muddy 5th Gen 4Runner equipped with a C4 Hybrid bumper.

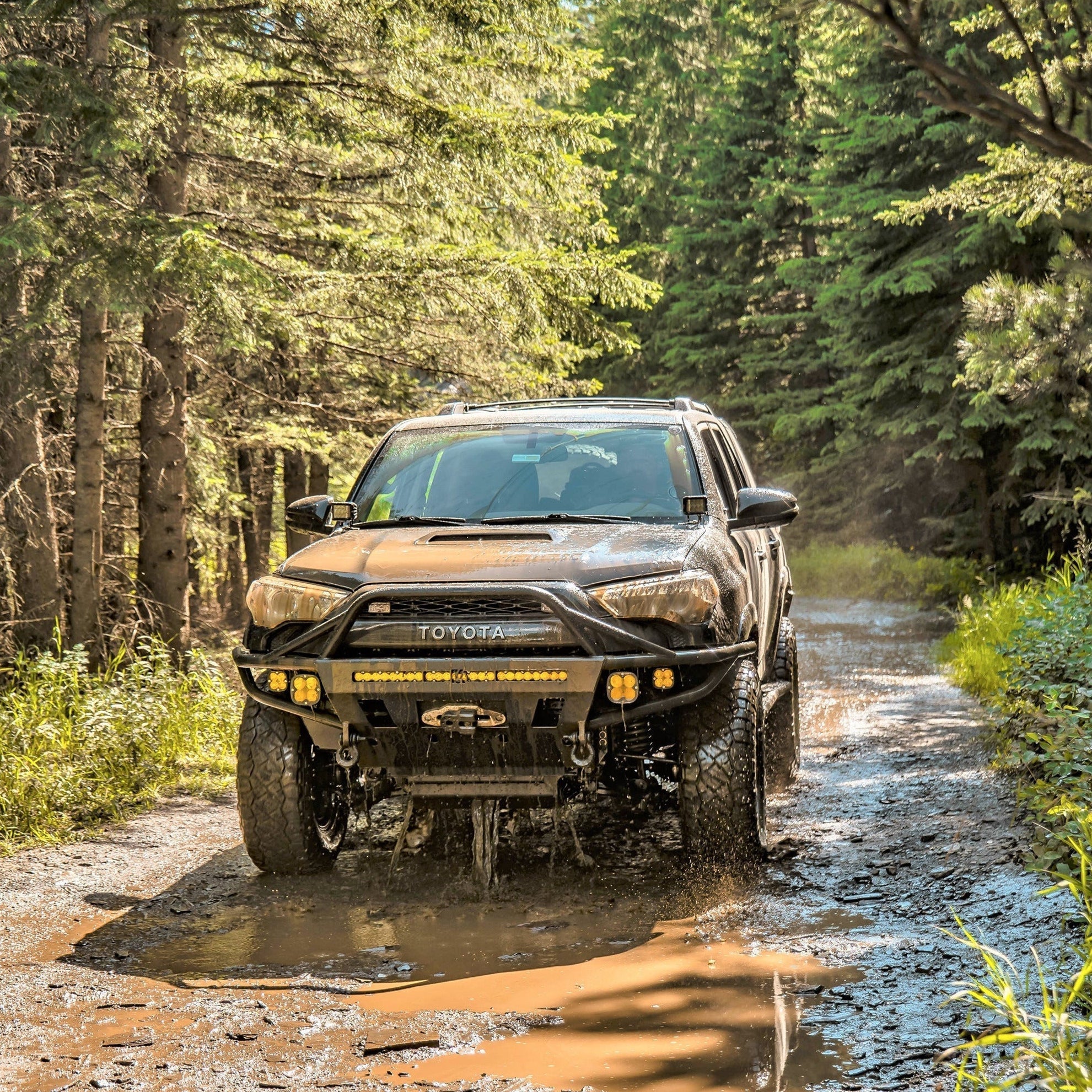

Action photo of a 2014+ 4Runner splashing through a wet and muddy mountain trail and equipped with a C4 Hybrid winch bumper. Action photo of a 2014+ 4Runner splashing through a wet and muddy mountain trail and equipped with a C4 Hybrid winch bumper.
4th Gen 4Runner dripping water and mud after offroading in the mountains. 4th Gen 4Runner dripping water and mud after offroading in the mountains.

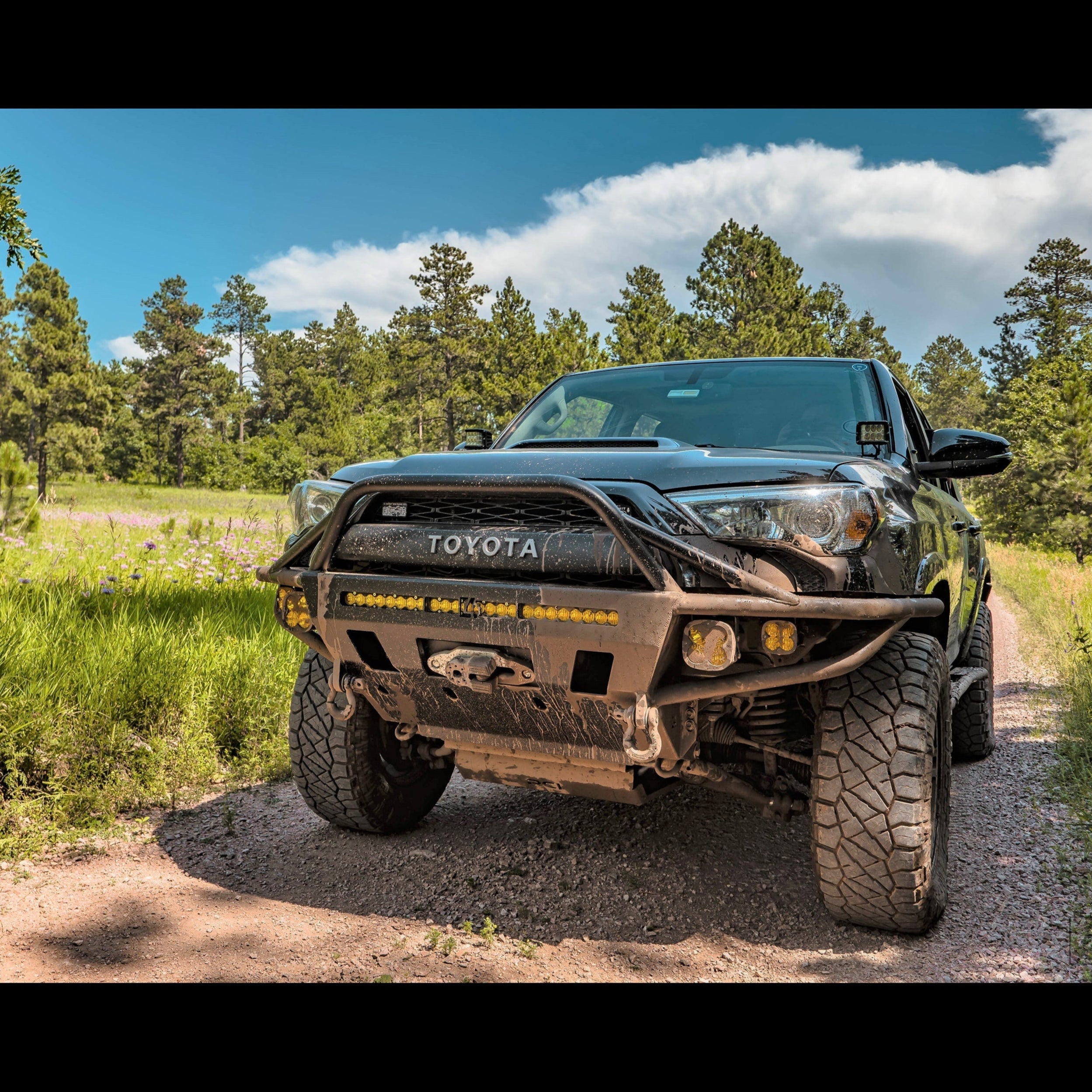

Black 2014 4Runner tastefully modified to include a C4 Hybrid front bumper with full-height bull bar and tube gussets. Black 2014 4Runner tastefully modified to include a C4 Hybrid front bumper with full-height bull bar and tube gussets.
1 15

C4 Fabrication

4Runner Hybrid Front Bumper / 5th Gen / 2014+

$1,745.00

  • (Lead-Time)

      • This bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch, LED light bar and multiple combinations of fog lighting in the tube area.
      • Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
      • Center portion is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
      • 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
      • Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
      • If you have TSS you must select YES for the TSS relocation bracket (NOT compatible with mid-height bull bar)
      • Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
      • Is not compatible with MTM front camera without relocating camera above bumper
      • We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
      • 120lbs without bull bar, 125lbs with mid height bull bar, 135lbs with full height bull bar.
      • Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
      • If you have ordered an Extreme X6S 30" Amber/White light bar from us with your bumper you will receive a pair of mounting brackets to use for mounting the light into the bumper which will allow it to fit properly. If you did NOT order a 30" X6S light bar from us and you are planning to install one, you will need to purchase these mounting brackets in order to install the light properly: Click here for brackets
      • This bumper requires cutting the original plastic bumper cover to install.
      • Installing this bumper also requires removing the original steel power steering cooler lines and replacing them with the power steering cooler kit we provide with the bumper. Installation of the cooler kit is straight forward and does not require draining the power steering system. Replacing the power steering lines provides more room for the winch and also removes the low hanging “U shaped” portion of the lines near where the bumper bolts to the frame so that the lines are not exposed to obstacles and debris.
      • SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted or powder coated to prevent rusting.
Light Bar Cutout: 30" Light Bar Cutout
