2014 Tundra Hybrid Front Bumper 2014 Tundra Hybrid Front Bumper
3rd Gen 2014 Tundra Hybrid Front Bumper 3rd Gen 2014 Tundra Hybrid Front Bumper

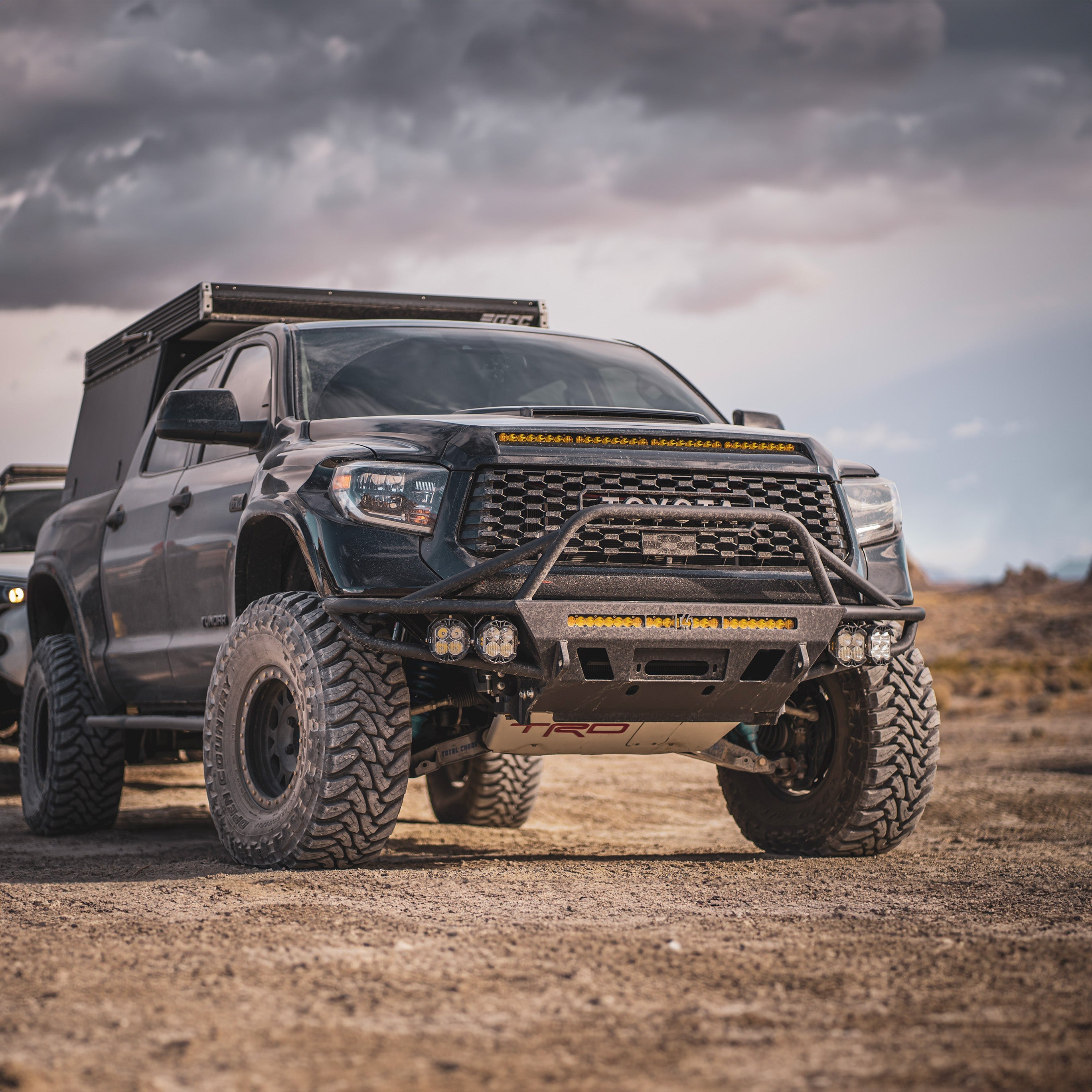

C4 Hybrid bumper installed on a lifted and wide body 2014+ Toyota Tundra Double Cab and equipped with a full array of aftermarket LED lighting. C4 Hybrid bumper installed on a lifted and wide body 2014+ Toyota Tundra Double Cab and equipped with a full array of aftermarket LED lighting.
Close view of the C4 Hybrid bumper installed on a lifted 2014+ Toyota Tundra Double Cab with widebody fenders and fully-equipped with aftermarket LED lighting. Close view of the C4 Hybrid bumper installed on a lifted 2014+ Toyota Tundra Double Cab with widebody fenders and fully-equipped with aftermarket LED lighting.
Quartering side angle showing the C4 Hybrid bumper for the 2014+ Toyota Tundra installed on a widebody-modified truck. Quartering side angle showing the C4 Hybrid bumper for the 2014+ Toyota Tundra installed on a widebody-modified truck.
C4 Hybrid bumper installed on a heavily modified Tundra Crew Max. C4 Hybrid bumper installed on a heavily modified Tundra Crew Max.
Quartering on photo of the C4 Hybrid bumper for the 2014+ Tundra installed on a black Crew Max. Quartering on photo of the C4 Hybrid bumper for the 2014+ Tundra installed on a black Crew Max.
Photo taken from ground level showing the clearance of the 2014+ Toyota Tundra Hybrid bumper from C4 Fabrication. Photo taken from ground level showing the clearance of the 2014+ Toyota Tundra Hybrid bumper from C4 Fabrication.
Red Toyota Tundra equipped with a C4 Hybrid bumper. Red Toyota Tundra equipped with a C4 Hybrid bumper.
C4 Hybrid bumper installed on a red Toyota Tundra CrewMax. C4 Hybrid bumper installed on a red Toyota Tundra CrewMax.
Quartering on photo of a red Tundra CrewMax equipped with the C4 Hybrid bumper. Quartering on photo of a red Tundra CrewMax equipped with the C4 Hybrid bumper.
Side angle of the C4 Hybrid bumper installed on a red Tundra Crewmax. Side angle of the C4 Hybrid bumper installed on a red Tundra Crewmax.
1 12

C4 Fabrication

Tundra Hybrid Front Bumper / 2nd Gen / 2014-2021

$1,745.00

    • (Lead-Time)

      The 2014-2021 Tundra Hybrid bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch, LED light bar and multiple combinations of fog lighting in the tube area.

      • Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
      • Center portion is made from 3/16″ laser cut P&O steel with 3/8″ thick mounting plates And 1/4″ winch mounting plate.
      • 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
      • Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
      • Full-height bull bar will work with TSS in TRD Pro grilles only. Bull bar will block the TSS sensor on regular grilles.
      • Mid-height bull bar works with TSS on all models
      • Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
      • We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
      • Bumper works with TRD Pro skid and aftermarket skids.
      • Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
      • If you have ordered an Extreme X6S 30" Amber/White light bar from us with your bumper you will receive a pair of mounting brackets to use for mounting the light into the bumper which will allow it to fit properly. If you did NOT order a 30" X6S light bar from us and you are planning to install one, you will need to purchase these mounting brackets in order to install the light properly: Click here for brackets
      • Bumper comes pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar.
      • Weighs 150lbs without bull bar, 165lbs with full height bull bar.
      • This bumper is a direct bolt on application. No cutting or modifications needed.
      • SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted or powder coated to prevent rusting.
Bull Bar Options: No Bull Bar
Parking Sensors: No Parking Sensors
Build Bumper Wider (For fiberglass fenders): No (Standard Width)
Bull Bar Options: No Bull Bar
Parking Sensors: No Parking Sensors
Build Bumper Wider (For fiberglass fenders): No (Standard Width)
